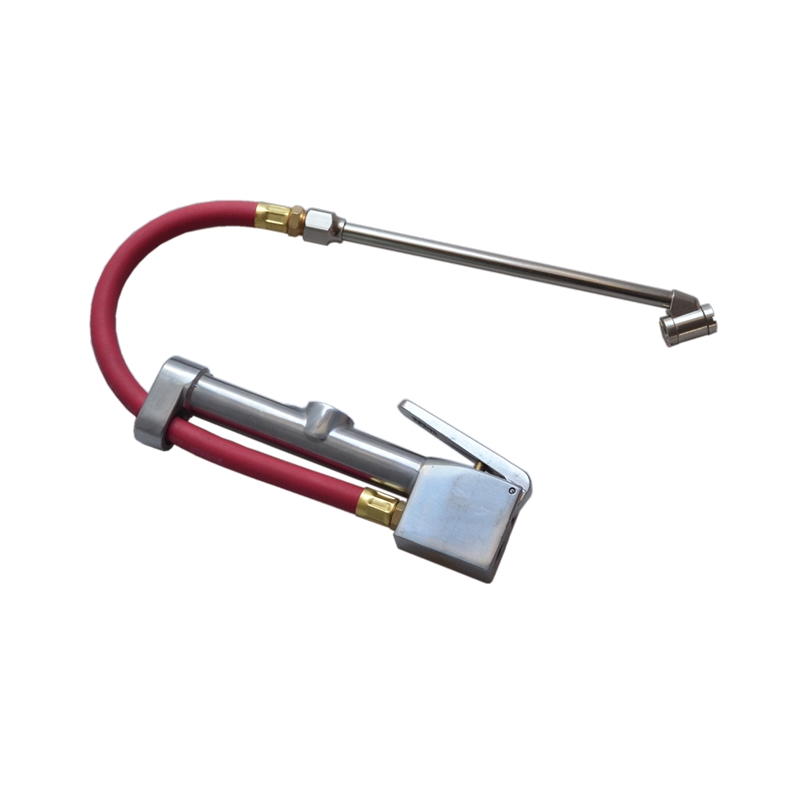

Dual Foot Inflator Gauge

Part # 192116

• The dual foot inflator gauge features handheld lever throttle which provides precise control of tire inflating or deflating
• Brass valve fitting and polish chrome plated steel finish is rust and corrosion resistance to endure long life span
• Dual foot inflator gauge is constructed with heavy duty cast aluminum body for longevity and durability
• Dual head chuck makes tire valve more accessible.
• Both valve cartridges and gauge of dual foot inflator gauge can be replaced.

Product Detail

Part Number 192116
Reader Unit Inflator gauge with viewing window
Chuck Type Dual Head Air Chuck
Max. Inflation 160 PSI
Scale PSI
Inlet Size 1/4" NPT / BSP female
Hose Length 15.7"(400mm)
Housing Aluminum Alloy Die Casting
Trigger Aluminum Alloy Die Casting
Accuracy +/- 2%
Operation inflate, deflate, measure
Max. Airline Pressure 170 PSI
Deflation Valve Combi trigger
