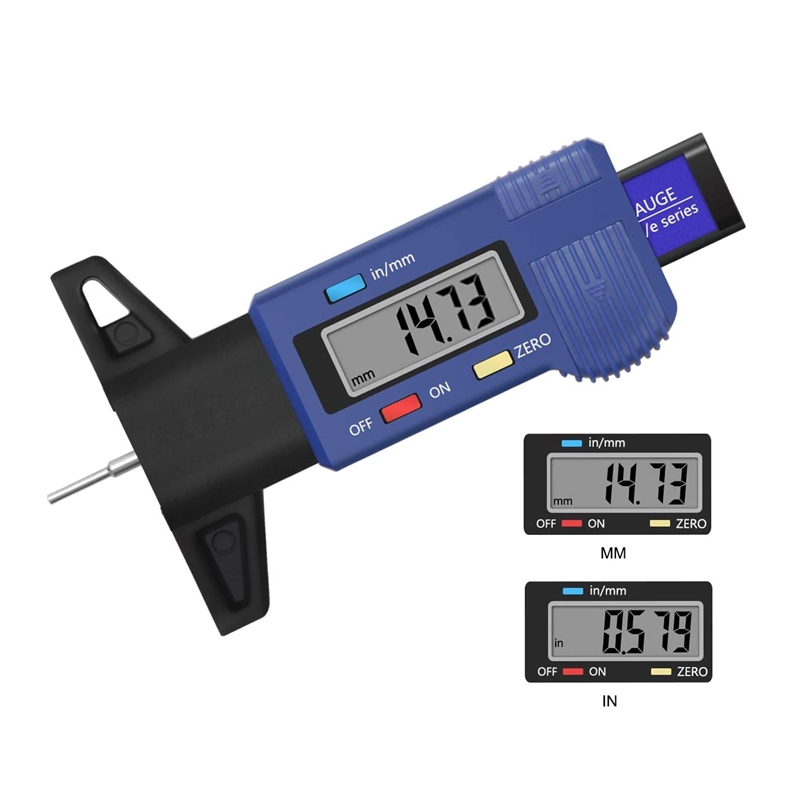

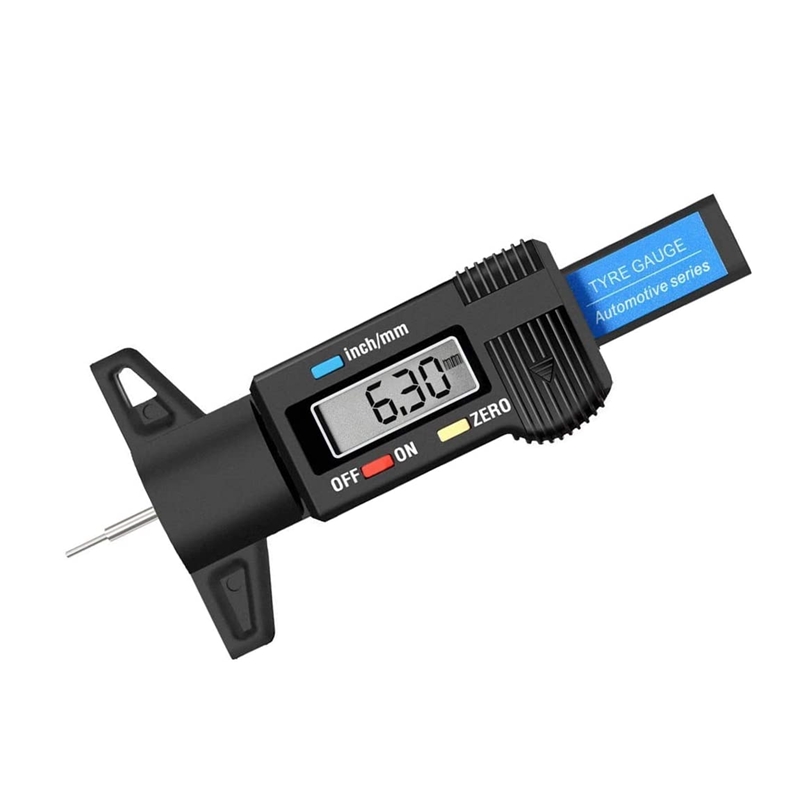

Digital Tire Tread Gauge

Part # 192144

●  The digital tire tread gauge is designed for different car tires tread measurement and also suitable for brake shoe, pad wear, a handy tool for both DIY and professional mechanics.

●  There are three buttons on front panel: inch / mm switching; On/Off and Zero.

●  The measuring value could be displayed in both inch and mm.

●  Large easy-to-read LCD with backlight, measure range: 0 – 25.4mm or 0 – 1 inch with increment of 0.01mm or 0.0005 inch. The backlight makes the reading easily in darkness.

●  The digital tire tread gauge features compact size, which makes it portable and easy to store in glove compartment, central console or tool box or tool bag without worrying about loss or damage.

●  The sturdy engineering plastic material makes it light weight and convenient for operation.

●  Automatic power off to save batter power.

●  The digital tire tread gauge can be zeroed at any position for easier adjustment.

●  It can be applied for your car, van, motorcycle, SUV, RV, truck and bus etc.

●  Minimum order quantity: 1,000pcs

Product Detail

The digital tire tread gauge is constructed with robust composite material, which makes it light weight and compact size, ideal as gift for father day or holiday to drivers or professional mechanism in auto workshop. They can be stored in your vehicle’s glove compartment, central console, tool box or tool bag in trunk, without taking much space or adding much extra weight.

The digital tyre tread gauge could be reset to zero at any position for better adjustment.

Large LCD display with backlight makes reading easier.

Product name: digital tire tread gauge

Range of application: tread depth, brake shoe, pad wear

Tread pattern range: 0 – 25.4mm / 1 inch

Tread pattern unit: mm/inch

Accuracy: +/-1% of full scale

Battery model: 1 x LR44 button battery (included)

Features: 1. Backlit digital display; 2. Automatic shutdown; 3. Lightweight and compact


Part Number 192144 Units mm, inch
Measuring Range 0 – 25.4mm / 1 inch Display LCD screen
Accuracy +/- 1 PSI of full range Lighting Backlight
Material Composite material Power Supply 1 x LR44 battery, included
