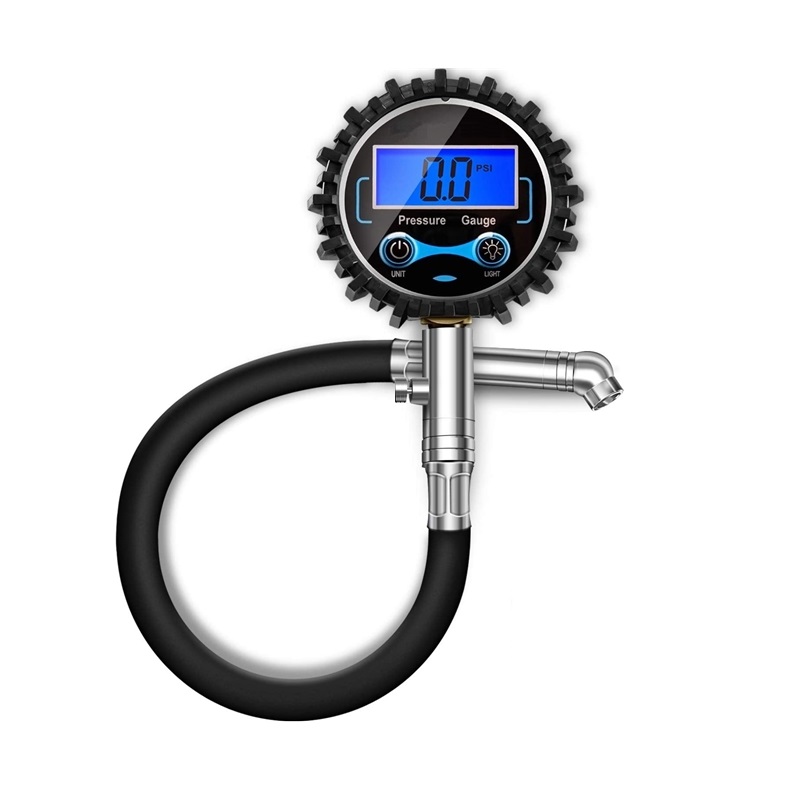

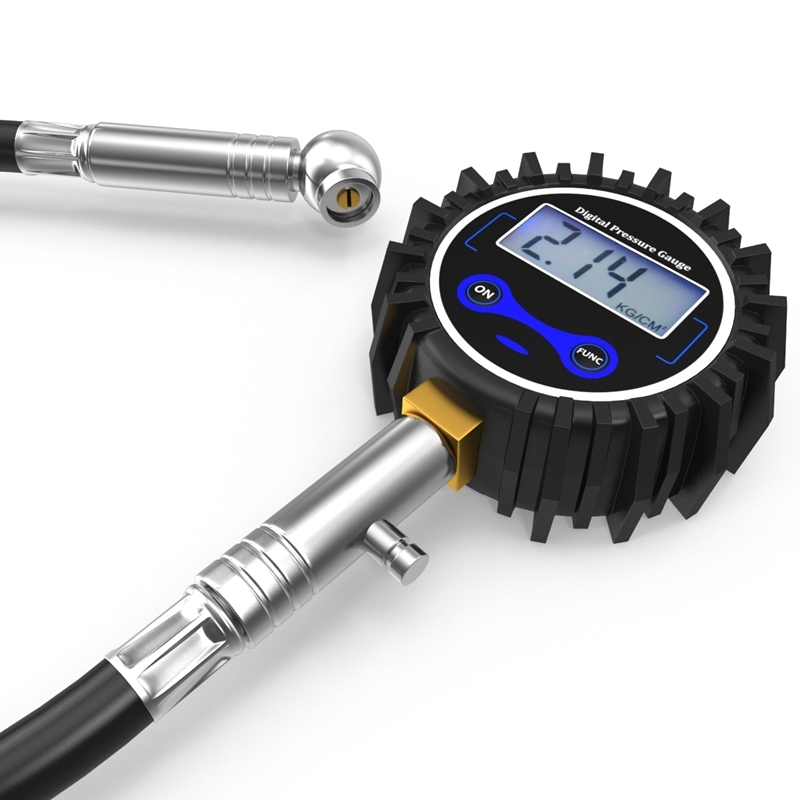

Item Type: Digital Tire Pressure Gauge
Material: Brass + Plastic
Display: LCD digital display
Pressure unit: 4 units can be switched (PSI, KPA, Bar, Kg.cm2)
Measuring range: 3-230PSI / 16BAR / 16Kg.cm2
Measurement accuracy: (3-100PSI) ± 1PSI, more than 100PSI ± 2PSI
Working temperature: -20-50 ℃
Key functions: on / off key (left), unit switch key & backlight (right)
Battery: 2 x 1.5V AAA batteries (included)
When the battery voltage is less than 2.5V, the battery symbol on the LCD screen flashes, which means the battery needs to be replaced.
How to use:
1. Measure the tire pressure when the tire is cold.
2. Firmly press the tire valve with the tail end of the gauge till the number shows the highest value.
3. Keep the front vertical direction to measure the pressure with the pressure gauge and read the tire pressure.
4. Check the tire pressure value (see the car description for this pressure value) and maintain the correct tire pressure.
5. After the reading is complete, press the pressure relief valve to allow the pressure in the gauge to drain.
6. After the measurement, re-lock the tire valve cap.
Specification:
| Part Number | 192128 | Brand | Customized brand / OEM |
| Maximum Pressure | 230 PSI / 16 Bar | Units | PSI, BAR, KPA, and KGF/CM2 |
| Accuracy | +/- 1% of full range | Display | LCD screen |
| Material | Composite Plastic + Brass | Chuck | Ball foot air chuck, other chucks also available |
| Minimum Order Quantity | 1,000 pcs | Power Supply | 3 x AAA batteries (included) |
