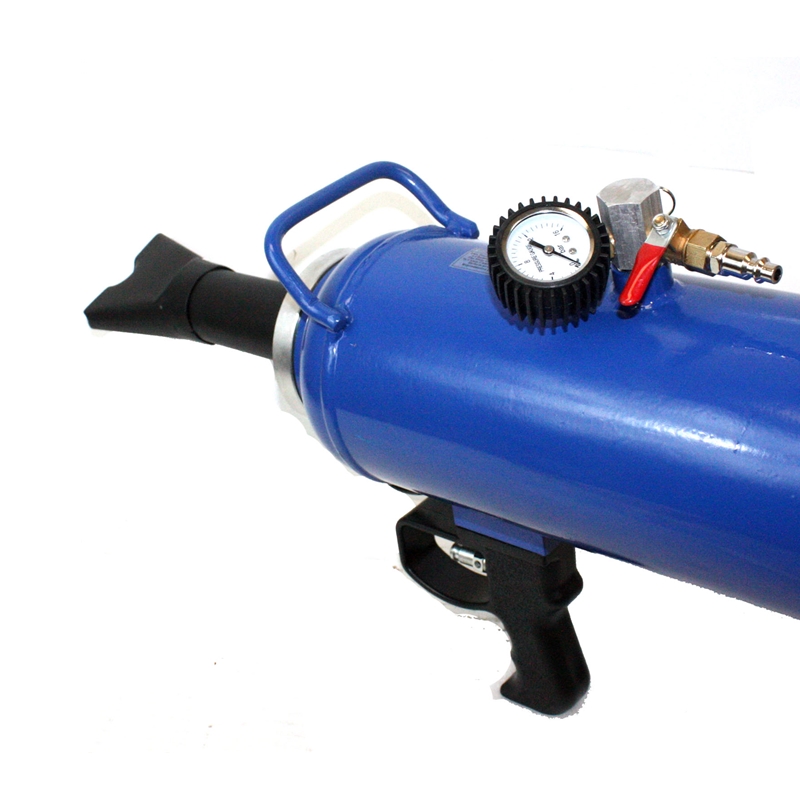

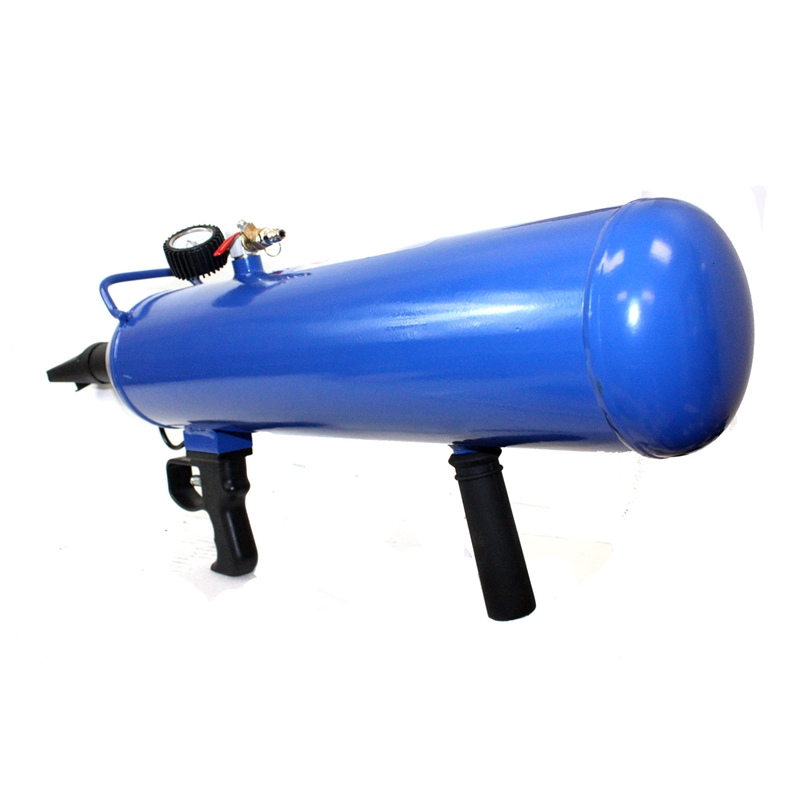

Tire Bead Seating Tool

Part # 192132

●  The tire Bead Seating Tool blasting the air out of the tank immediately puts the tires on the rims. The device is suitable for agricultural machinery, trucks, cars and motorcycles.

●  It is an essential equipment for any tire workshop. A built-in safety valve that regulates the tank pressure and a built-in gauge that shows the current tire pressure.

●  A handle that makes it easier to grasp the inflator by the edge and enables comfortable handling of the device.

●  The 2 gallon Bead Seating Tool consists of a sturdy, all-steel, powder-coated tank that is solid and durable enough to remain useful over the long term. Exquisite powder coating makes it rust and corrosion resistant.

●  After you have correctly inserted the high pressure tube into the gap between the tire and the rim and quickly turned the valve to ON, you will spend a short time inflating the tire and then turning the valve to OFF.

●  Different vehicles require different operating pressures. The gauge can help you accurately read and set the pressure for different vehicles. The pressure of our inflator is between 87-116 PSI.

●  A specially designed lip holds the thread barrel at the perfect angle for air supply during bead seating, while the quick release valve distributes air to deliver a full blown of air into the tire.

●  The high pressure air inflator is suitable for vehicles, cars, trucks, lawn tractors, tractors, large tractors, RVs, ATVs and more. It’s also convenient for you to take it with the handle.

Product Detail

The Bead Seating Tool emits an enormous blast of air that places the tire beads quickly and safely so that normal inflation is possible.

The trigger-style exhaust valve allows for optimal airflow control while both hands can hold the tank / valve assembly – critical to effective and safe use.

The unique nozzle design significantly reduces the recoil of the blasting and has strategically placed exhaust ports for optimal inflation of a wide variety of tire sizes and diameters.

The in-line design keeps operator at a safe distance from the tire and wheel while sitting.

The specially designed lip keeps the threaded barrel at the ideal angle of air blasting during the inflation, and the quick release valve blasts the air into the tire bead.

Our tire bead seater features a safety release valve for when the pressure in the tank is too high. The high pressurized air creates a back blow that requires you wear safety goggles and ear protecting headphones for the loud compression blast.

Design for placing tires on rim bead easily, safely and quickly. Durable solid steel construction. Siting on all tires on heavy duty vehicles including ATV, tractor, automobiles, trucks and more. On / off valve that controls the filling of the tank. The air gauge gives you the exact amount of air. Unique long neck design to reach tire and keep you at a safe distance. Simple plug-in and ready to use right out of the box.


Part Number 192132 ATV Tire 40 PSI
Material Solid Steel Construction Lawn Tractor Tire 40 – 50 PSI
Application All Tires Of Heavy Duty Vehicle Including ATV, Tractor, Cars, Truck, And More Tractor Tire 100 – 120 PSI
Capacity 2 Gallons / 9 Liter Large Tractor Tire 120 PSI
Work On Tire Up To 24.5″ Car Tire 50 – 60 PSI
Operating Pressure: 87 – 116 PSI (6 – 8 Bar) Truck Tire 100 – 130 PSI
Maximum Pressure: 150 PSI (10 Bar) 4 x 4 Tire 60 – 80 PSI
