Universal Safety Air Coupler, 7 In 1
Part # 181107
● The universal safety air coupler features to release compressed air before decoupling.
● It permits multiple series nipples to mate with one coupler.
● Safety sleeve to prevent accidental disconnecting and injury.
● 7 in 1 universal feature eliminates the inconvenience of matching interchanges by adopting seven of the most common 1/4” body size air plugs.
● Safety exhaust design bleeds off down line pressure prior to disconnect the connector, preventing hose whipping.
● Compatible with 7 major types of nipples: Industrial (Milton), Automotive (Tru-Flate), ARO, Lincoln, high flow (German type), UK type (Cejn 295, Rectus 19) and Italian type.
● The universal coupler is constructed of steel and aluminum alloy. Steel is hard and resilient with more damage resistance than softer metals and a wide range of working temperature. Aluminum alloy provides high corrosion resistance.
● Applied for air compressors, pneumatic tools and drop down air lines.
● 1/4 basic flow size
● Connecting type: NPT male thread, NPT female thread, hose barb.
● Max. air pressure: 120 PSI
● Max. working temperature: -20°~ +100°C / -4°~ +212°F
● Seal Material: Nitrile
● Minimum Order Quantity: 2,000pcs / item
-
Safety Air Coupler, Industrial Style
Part # 181106
● This safety air quick coupler is very high quality that feature a non-marring, impact resistant, high grade composite body.
● The coupler is easy to use for anyone and are built for safety and high efficiency!
● Nominal bore size: 1/4.
● The quick release button on this coupler allows you to easily release plugs with one hand and it also purges the air on everything down line, such as air hose and tools, so that there is no hose whipping or sudden pressure releases.
● This safety coupler feature a 1/4″ female NPT threaded inlet. It is compatible with Milton / Industrial style air plugs, 1/4 body size.
-

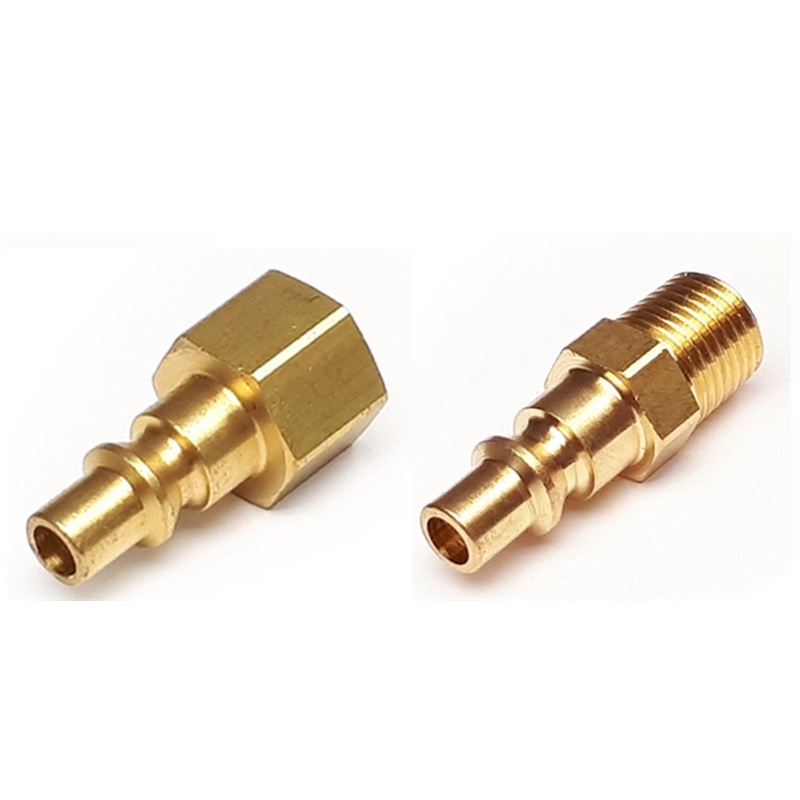

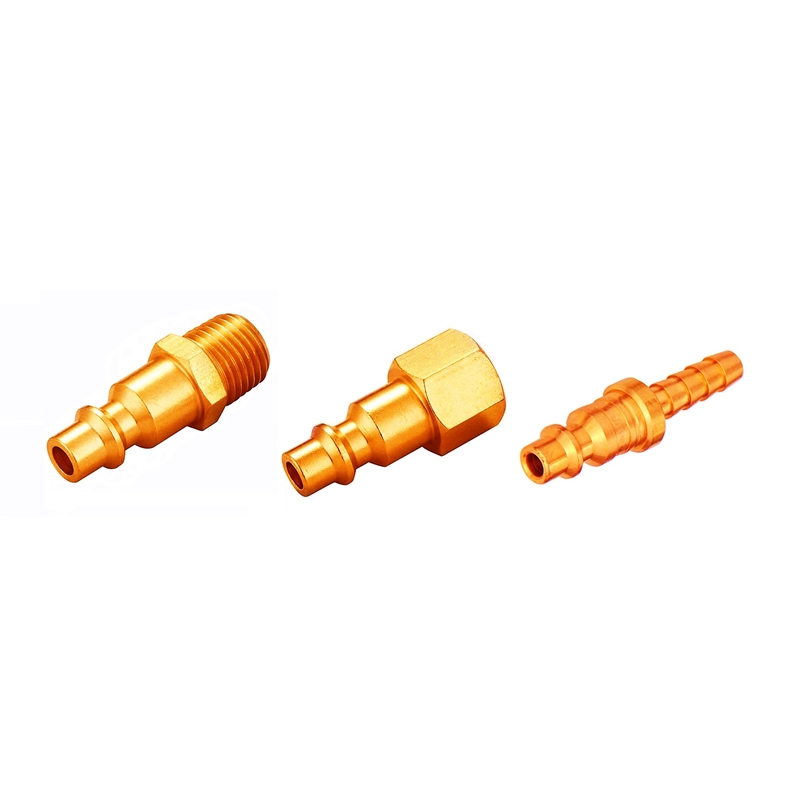

Industrial Style Air Coupler Plug
● The industrial style Air Coupler Plug is made of solid brass for better durability.
● Our fittings are interchangeable with similar couplers manufactured to the same standard.
● These air nipples conform to Mil spec MIL-C-4109F and ISO6150-B.
● Applied for air compressors, pneumatic tools, air lines etc.
● Body size includes 1/4, 3/8 & 1/2.
● Connecting type: NPT male thread, NPT female thread, hose barb.
● Max. air pressure: 300 PSI
● Max. working temperature of our Air Coupler Plug is up to 120℃ or 250℉
● Minimum Order Quantity: 2,000pcs / item
-

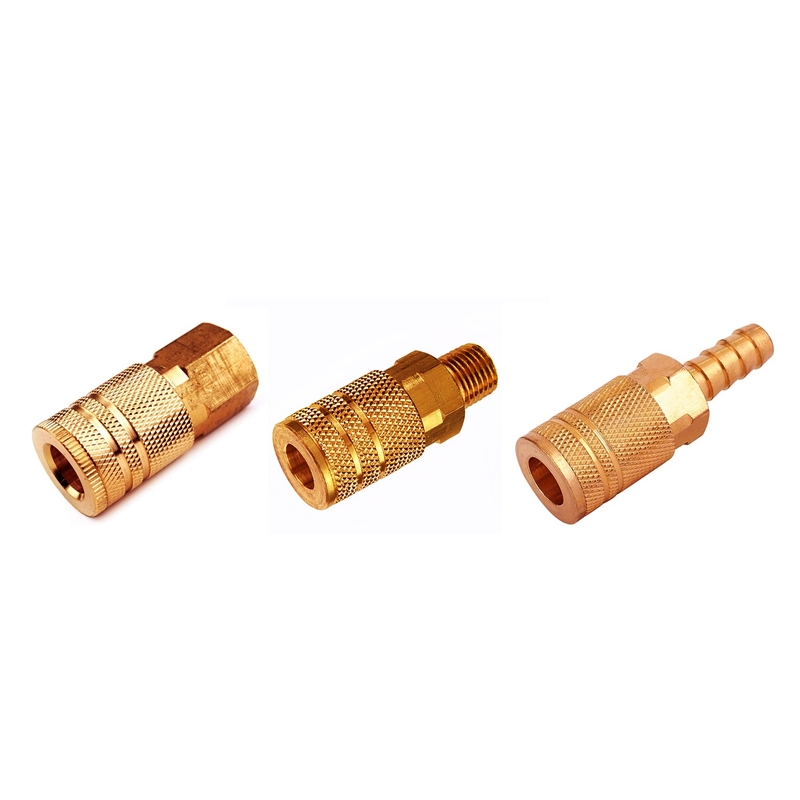

Industrial Style Air Couplers
● These industrial style Quick Connect Air Couplings is made of solid brass for better durability.
● 6 ball bearings provides better grip when connecting and sleeve guard prevents accidental disconnect.
● The tubular valve mechanism promotes high air flow.
● Our fittings are interchangeable with similar plugs manufactured to the same standard.
● These air couplers conform to Mil spec MIL-C-4109F and ISO6150-B.
● Applied for air compressors, pneumatic tools, air lines etc.
● Body size includes 1/4, 3/8 & 1/2.
● Connecting type: NPT male thread, NPT female thread, hose barb.
● Max. air pressure: 300 PSI.
● Max. working temperature of our Quick Connect Air Couplings is up to 120℃ or 250℉.
● Minimum Order Quantity: 2,000pcs / item
-

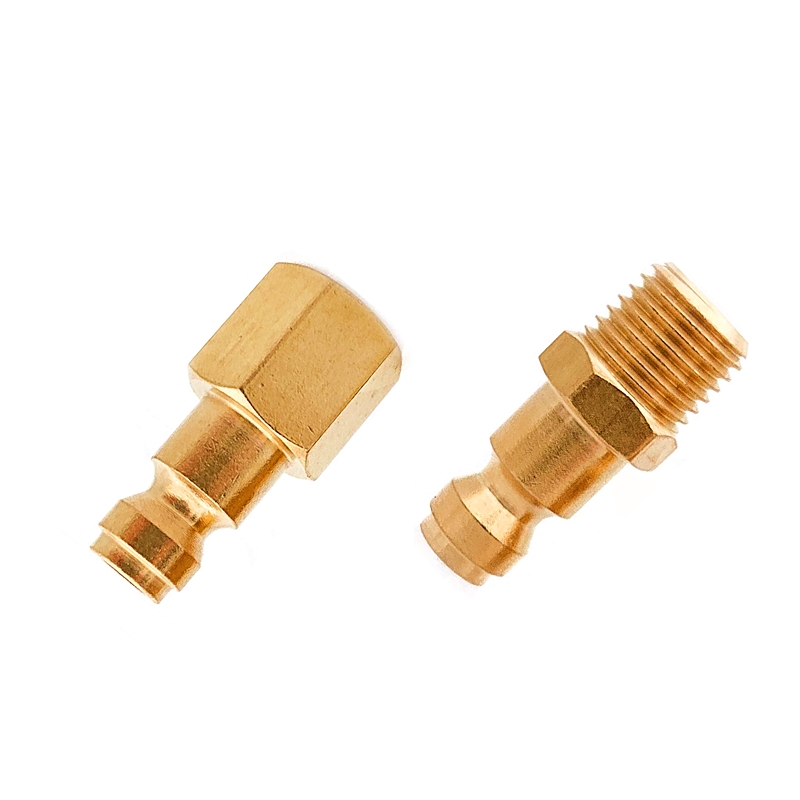

Tru-Flate Style / Automotive Air Coupler Plug
● The Tru-Flate style Air Coupler Plug, commonly referred to as automotive interchange, is made of solid brass for better durability.
● Our fittings are interchangeable with similar couplers manufactured to the same standard.
● Applied for air compressors, pneumatic tools, water, grease, paint etc.
● Body size includes 1/4 and 3/8
● Connecting type: NPT male thread, NPT female thread, hose barb.
● Max. air pressure: 300 PSI
● Max. working temperature of our Air Coupler Plug is up to 120℃ or 250℉
● Minimum Order Quantity: 2,000pcs / item
-
Tru-Flate Style / Automotive Air Coupler
● The Tru-Flate style or Automotive Air Coupler is made of solid brass for better durability.
● 6 ball bearings provides better grip when connecting and sleeve guard prevents accidental disconnect.
● The tubular valve mechanism promotes high air flow.
● Our fittings are interchangeable with similar couplers manufactured to the same standard.
● Applied for air compressors, pneumatic tools, water, grease, paint etc.
● Body size includes 1/4 & 3/8.
● Connecting type: NPT male thread, NPT female thread, hose barb.
● Max. air pressure: 300 PSI
● Max. working temperature of our Automotive Air Coupler is up to 120℃ or 250℉
● Minimum Order Quantity: 2,000pcs / item
-
ARO Style Air Coupler Plug
● The ARO or A style Air Coupler Plug is made of solid brass for better durability.
● Our fittings are interchangeable with similar couplers manufactured to the same standard.
● Applied for air compressors, pneumatic tools, water, grease, paint etc.
● 1/4 basic flow size
● Connecting type: NPT male thread, NPT female thread, hose barb.
● Max. air pressure: 300 PSI
● Max. working temperature: -40°~ +120°C / -40°~ +250°F
● Our ARO Air Coupler Plug is also available in material steel with zinc plated which features high corrosion resistance and long service life.
● Minimum Order Quantity: 2,000pcs / item
-
ARO Style Air Coupler
● The ARO Coupler or A Style Coupler is made of solid brass for better durability.
● Ball bearings provides better grip when connecting and sleeve guard prevents accidental disconnect.
● The tubular valve mechanism promotes high air flow.
● Our fittings are interchangeable with similar couplers manufactured to the same standard.
● Applied for air compressors, pneumatic tools, water, grease, paint etc.
● 1/4 basic flow size
● Connecting type: NPT male thread, NPT female thread, hose barb.
● Max. air pressure: 300 PSI
● Max. working temperature: -40°~ +120°C / -40°~ +250°F
● Our ARO Coupler in material steel is also available on request. The steel A Style Coupler with zinc plated features high corrosion resistance and long service life.
● Minimum Order Quantity: 2,000pcs / item
-
Lincoln Style Air Coupler Plug
● The Lincoln or L style long nose interchange Air Coupler Plug is made of harden steel.
● Lincoln style air fitting are the male end of coupling sets, also called quick-connect air coupling plugs or nipples. They are inserted into the Lincoln air coupler bodies (female ends) to connect pneumatic tools. Steel is hard and resilient with more damage resistance than softer metals and a wide range of working temperature, and Zinc-plated finish provides high corrosion resistance.
● The Lincoln style air fitting is interchangeable with Lincoln Interchange’s long stem series.
● Applied for air compressors, pneumatic tools and use only in air workshop.
● 1/4 basic flow size
● Connecting type: NPT male thread, NPT female thread.
● Max. air pressure: 300 PSI
● Max. working temperature: -40°~ +120°C / -40°~ +250°F
● Seal Material: Nitrile
● Our Lincoln style Air Coupler Plug is also available in material brass on request.
● Minimum Order Quantity: 2,000pcs / item
-
Lincoln Style Air Coupler
>● The Lincoln or L style long nose interchange air coupler is made of solid brass for better durability.
● Lincoln Air Coupler is the female end of coupling sets, also called quick-connect air coupling or compressed air coupling. They are connected with the Lincoln air plugs (male ends) to connect pneumatic tools. Lincoln Air Coupler in steel material is available. Steel is hard and resilient with more damage resistance than softer metals and a wide range of working temperature, and Zinc-plated finish provides high corrosion resistance.
● The Lincoln Air Coupler is interchangeable with Lincoln Interchange’s long stem series.
● Applied for air compressors, pneumatic tools and use only in air workshop.
● 1/4 basic flow size
● Connecting type: NPT male thread, NPT female thread.
● Max. air pressure: 300 PSI
● Max. working temperature: -40°~ +120°C / -40°~ +250°F
● Seal Material: Nitrile
● Minimum Order Quantity: 2,000pcs / item
-

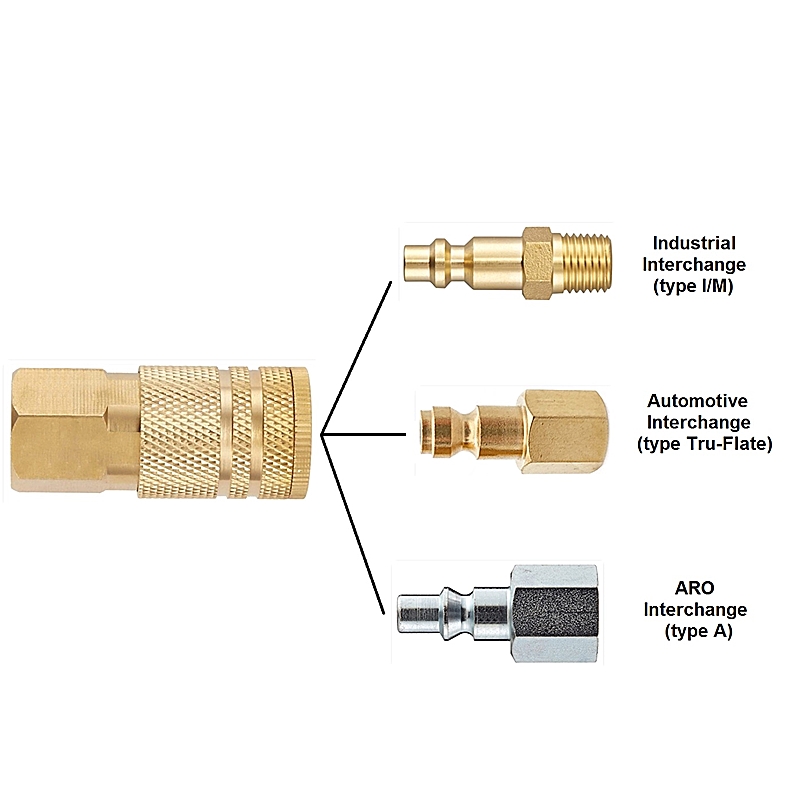

Universal Air Coupler – Industrial, Automotive, ARO
● The Universal Air Coupler is made of solid brass for better durability.
● It accepts three types of nipples: Industrial Interchange, Automotive / Tru-Flate style and ARO style.
● The Universal Air Coupler permits multiple series nipples to mate with one coupler.
● The universal air fitting in steel material is available. Steel is hard and resilient with more damage resistance than softer metals and a wide range of working temperature, and Zinc-plated finish provides high corrosion resistance.
● Applied for air compressors, pneumatic tools and drop down air lines.
● 1/4 basic flow size
● Connecting type: NPT male thread, NPT female thread.
● Max. air pressure: 300 PSI
● Max. working temperature: -40°~ +120°C / -40°~ +250°F
● Seal Material: Nitrile
● Minimum Order Quantity: 2,000pcs / item
-

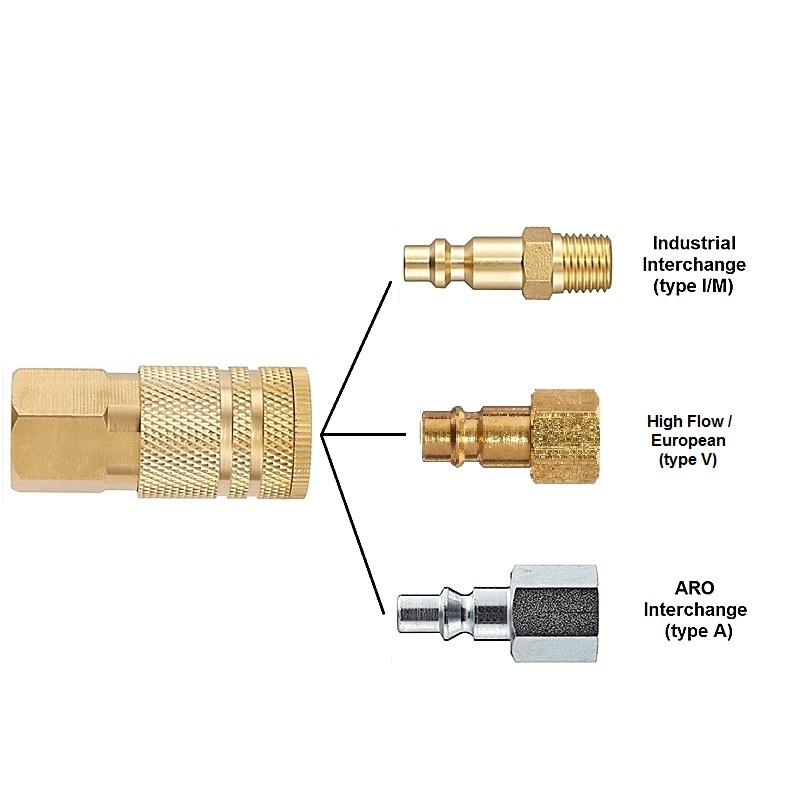

Universal Quick Coupler – Industrial, High Flow / European, ARO
● The high flow Universal Quick Coupler is made of solid brass, which has better durability.
● It accepts three types of nipples: Industrial Interchange, High Flow / V style or European style and ARO style.
● The high flow Universal Quick Coupler allows multiple series nipples to mate with one coupler.
● The universal air fitting in steel material is available. Steel is hard, and has higher damage resistance and a wide operating temperature range than soft metals. The galvanized surface provides high corrosion resistance.
● Applied for air compressors, pneumatic tools and drop down air lines.
● 1/4 basic flow size
● Connecting type: NPT male thread, NPT female thread.
● Max. air pressure: 300 PSI
● Max. working temperature: -40°~ +120°C / -40°~ +250°F
● Seal Material: Nitrile
● Minimum Order Quantity: 2,000pcs / item
-

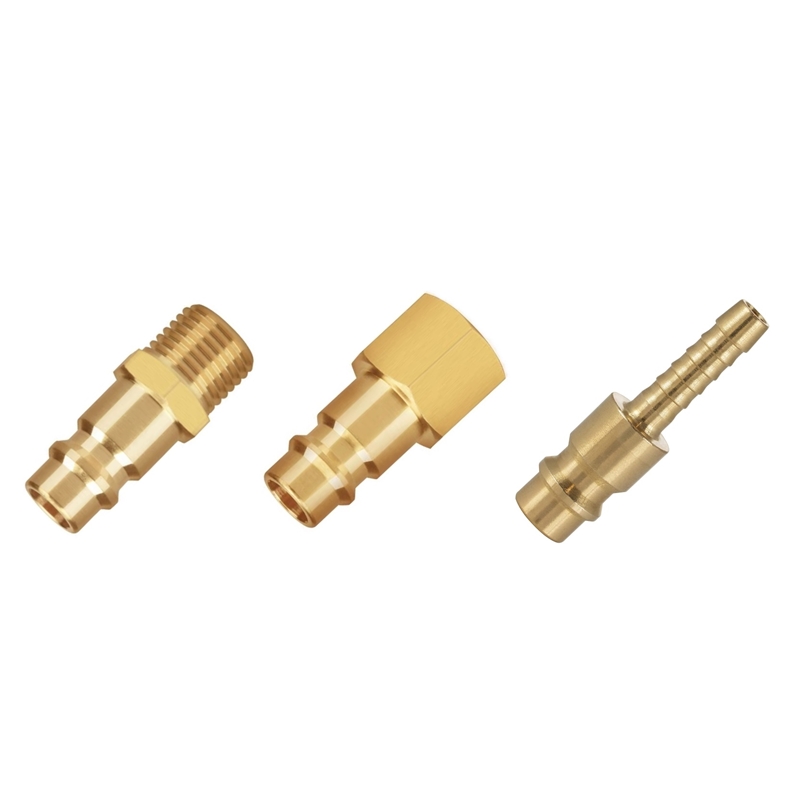

High Flow Style / European Air Coupler Plug
● The high flow or V style Air Coupler Plug has more than 2 times larger flow area than standard industrial interchange fittings. The increased flow results in greater tool efficiency and decreased air costs. The nipples are made of solid brass for better durability, and steel material is also available. Steel is hard and resilient with more damage resistance than softer metals and a wide range of working temperature, and Zinc-plated finish provides high corrosion resistance.
● High flow air hose fittings are the male end of coupling sets, also called quick-connect air coupling plugs or nipples. They are inserted into the V style air coupler bodies (female ends) to connect pneumatic tools.
● The high flow or V style Air Coupler Plug is interchangeable with Germany style couplings DN7.2 – 7.8, Cejn 320, Legris 25/26, Norgren 234/238, Rectus 25/26, Schrader InterCheck 35.
● Applied for air compressors, pneumatic tools and use only in air workshop.
● 1/4 & 3/8 basic flow size
● Connecting type: NPT male thread, NPT female thread and hose barb.
● Max. air pressure: 300 PSI
● Max. working temperature: -40°~ +120°C / -40°~ +250°F
● Seal Material: Nitrile
● Minimum Order Quantity: 2,000pcs / item
-
Germany Style / High Flow Air Coupler
● The High Flow Air Coupler has greater airflow characteristics for the larger air tool applications in garage and tire shop environments. The increased flow results in greater tool efficiency and decreased air costs. The high flow air compressor fittings are manufactured in solid brass for better durability, and steel material is also available. Steel is hard and resilient with more damage resistance than softer metals and a wide range of working temperature, and Zinc-plated finish provides high corrosion resistance.
● High flow air hose fittings are the female end of coupling sets, also called high flow quick connect air fittings or couplings. They are coupled with V style air nipples (male ends) to connect pneumatic tools.
● The High Flow Air Coupler is interchangeable with Germany style couplings DN7.2 – 7.8, Cejn 320, Legris 25/26, Norgren 234/238, Rectus 25/26, Schrader InterCheck 35.
● Applied for air compressors, pneumatic tools and use only in air workshop.
● 1/4 & 3/8 basic flow size
● Connecting type: NPT male thread, NPT female thread and hose barb.
● Max. air pressure: 300 PSI
● Max. working temperature: -20°~ +120°C / -4°~ +250°F
● Seal Material: Nitrile
● Minimum Order Quantity: 2,000pcs / item
-

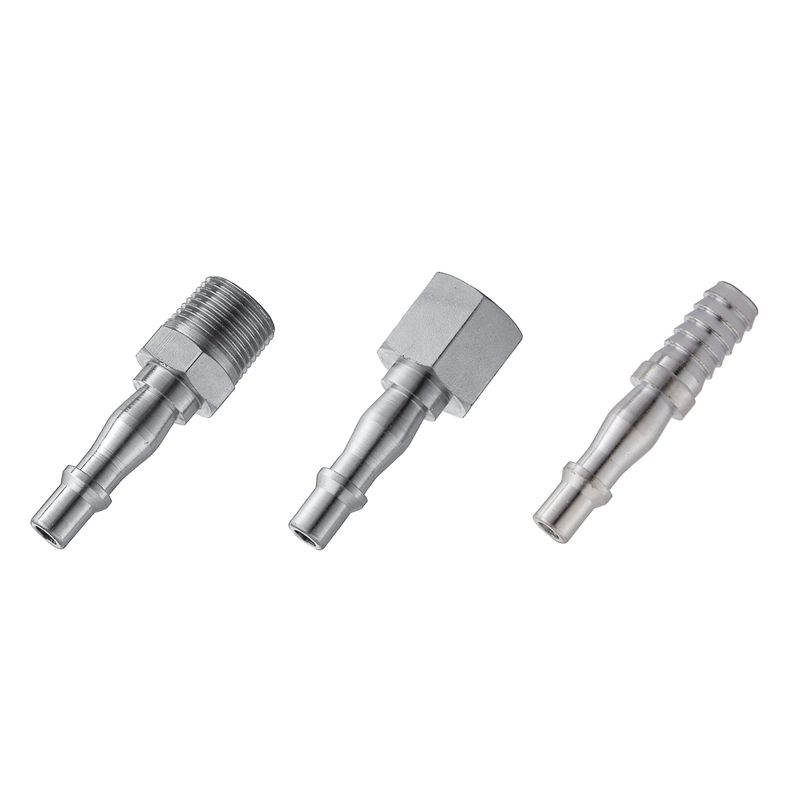

UK Style Air Coupling Adapter
● The UK style air coupling adapter are manufactured in heat-treated hardened steel for better durability. Steel is hard and resilient with more damage resistance than softer metals and a wide range of working temperature, and Zinc-plated finish provides high corrosion resistance.
● The standard push-fit adapter that screws onto air tools with corresponding threaded air inlet terminal to establish a secure, positive connection to the air line (when used with an appropriate coupling).
● The air coupling adapter feature greater airflow characteristics for the larger air tool applications in garage and tire shop environments. The increased flow results in greater tool efficiency and decreased air costs. The air adapter are the male end of coupling sets. They are coupled with UK style air couplings (female ends) to connect pneumatic tools.
● The UK style air coupling adapter are compatible with Cejn 295 and Rectus 19.
● Applied for air compressors, pneumatic tools and air lines in workshop.
● Connecting type: BSPT male thread, BSPT female thread and hose tailpiece.
● Max. air pressure: 14 bar / 200 PSI
● Max. working temperature: -20°~ +120°C / -4°~ +250°F
● Minimum Order Quantity: 2,000pcs / item
-

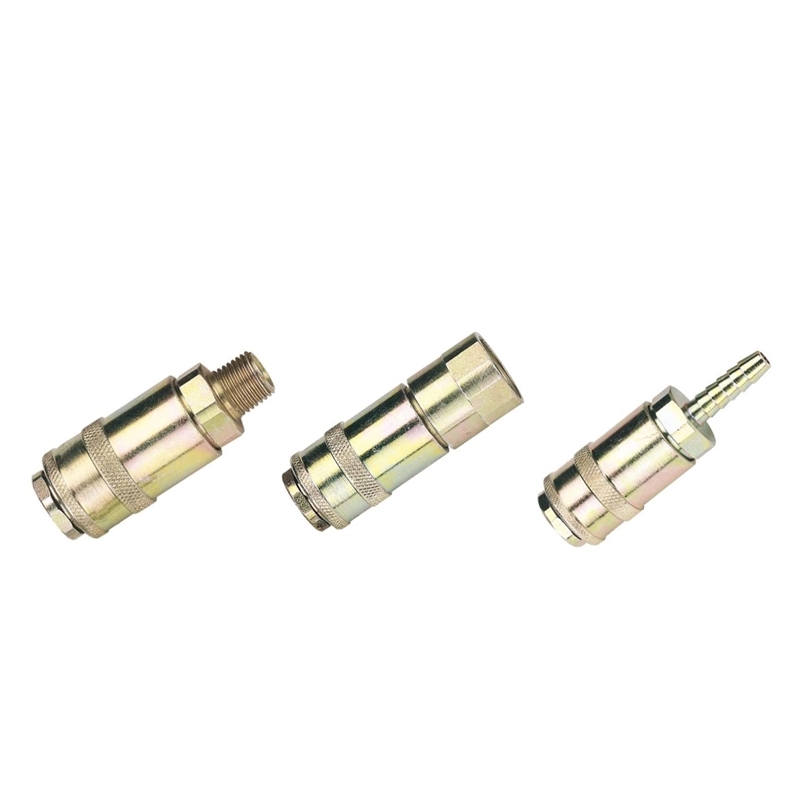

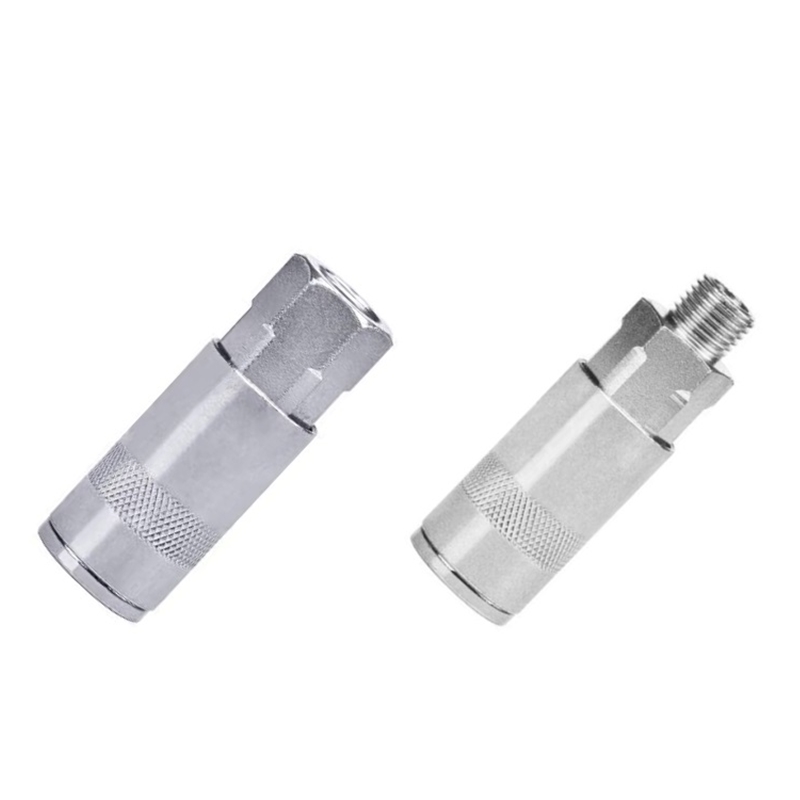

UK Style Air Quick Connect Couplings, Single Action
● The UK style air quick connect couplings are manufactured in heat-treated hardened steel for better durability. Steel is hard and resilient with more damage resistance than softer metals and a wide range of working temperature, and Zinc-plated finish provides high corrosion resistance.
● Single action for quick disconnect, the coupling is connected by simply pushing the adaptor into the socket, the sleeve guard will restore automatically, no need manually slide back.
● The air quick connect couplings feature greater airflow characteristics for the larger air tool applications in garage and tire shop environments. The increased flow results in greater tool efficiency and decreased air costs. The air couplings are the female end of coupling sets. They are coupled with UK style air nipples (male ends) to connect pneumatic tools.
● The UK style air quick connect couplings are compatible with Cejn 295 and Rectus 19.
● Applied for air compressors, pneumatic tools and air lines in workshop.
● Connecting type: BSPT male thread, BSPT female thread and hose tailpiece.
● Max. air pressure: 14 bar / 200 PSI
● Max. working temperature: -20°~ +120°C / -4°~ +250°F
● Seal Material: Nitrile
● Minimum Order Quantity: 2,000pcs / item
-
UK Style Air Quick Connect Couplings, Double Action
● The UK style air quick connect couplings are manufactured in heat-treated hardened steel for better durability. Steel is hard and resilient with more damage resistance than softer metals and a wide range of working temperature, and Zinc-plated finish provides high corrosion resistance.
● Double action, slide the collar back and insert the fitting, then restore the collar to allow the tool and airline to quickly connect or disconnect.
● The air quick connect couplings feature greater airflow characteristics for the larger air tool applications in garage and tire shop environments. The increased flow results in greater tool efficiency and decreased air costs. The air couplings are the female end of coupling sets. They are coupled with UK style air nipples (male ends) to connect pneumatic tools.
● The UK style air quick connect couplings are compatible with Cejn 295 and Rectus 19.
● Applied for air compressors, pneumatic tools and air lines in workshop.
● Connecting type: BSPT male thread, BSPT female thread and hose tailpiece.
● Max. air pressure: 14 bar / 200 PSI
● Max. working temperature: -20°~ +120°C / -4°~ +250°F
● Seal Material: Nitrile
● Minimum Order Quantity: 2,000pcs / item
-

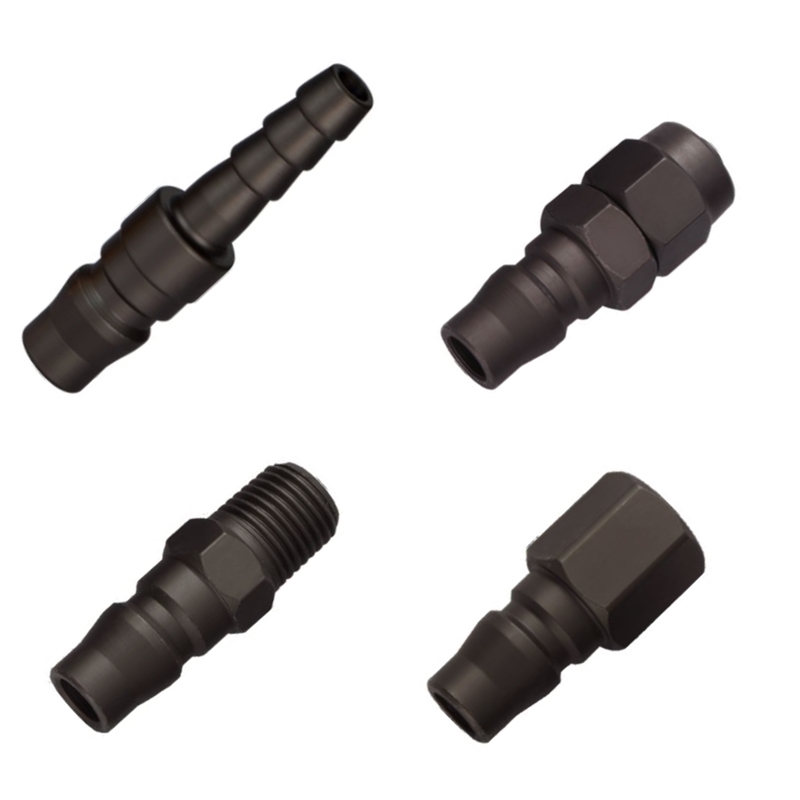

Nitto Style Air Fittings
● The Nitto style air fittings features simple and secure push-to-connect (single action) design, just plug the adapter into coupler for connection. One-hand operation saves the connection time and improve efficiency. The Nitto compressor fittings are manufactured in heat-treated hardened steel for better durability. Steel is hard and resilient with more damage resistance than softer metals and a wide range of working temperature. Special heat treatment and black oxidation finish meet military standard, which provides high corrosion resistance.
● The standard push-fit adapter that screws onto air tools with corresponding threaded air inlet terminal to establish a secure, positive connection to the air line (when used with an appropriate coupling).
● The Nitto style air fittings feature greater airflow characteristics for the larger air tool applications in garage and tire shop environments. The built-in valve design lower the pressure loss and increase flow rate. The air plugs are the male end of coupling sets. They are coupled with Nitto style air couplings / sockets to connect pneumatic tools.
● The Nitto style air fittings are compatible with Nitto equivalent series.
● Applied for air compressors, pneumatic tools and air lines in workshop.
● Nominal bore diameter: 7.5mm (body size: 1/4)
● Connecting type: BSPT male thread, BSPT female thread, hose barb and hose guard nut.
● Max. air pressure: 15 bar / 218 PSI
● Max. working temperature: -20°~ +120°C / -4°~ +250°F
● Minimum Order Quantity: 2,000pcs / item
-

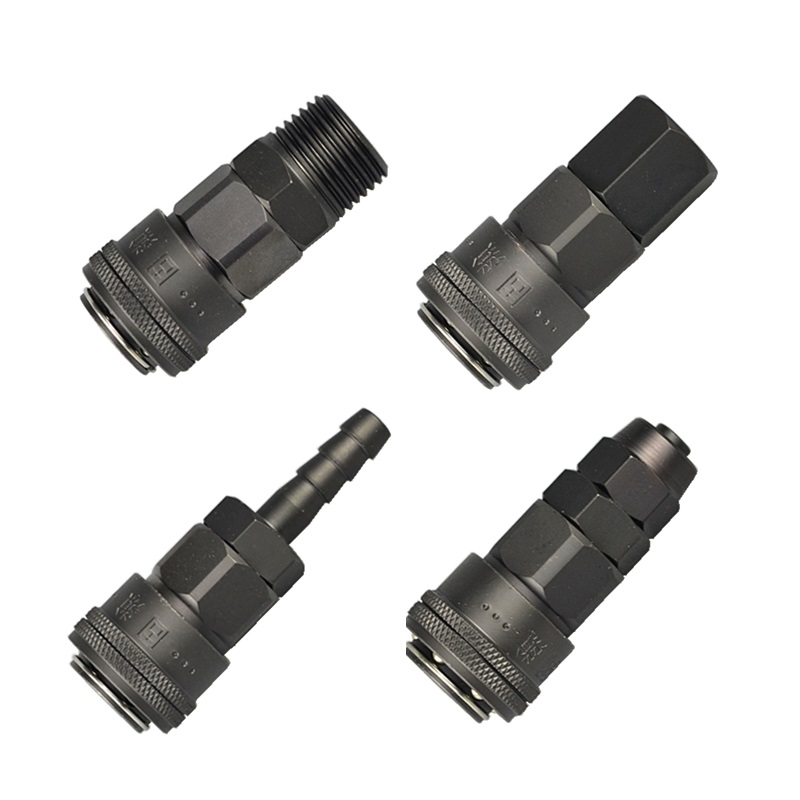

Nitto Style Air Coupler
● The Nitto air coupler features simple and secure push-to-connect (single action) design, just plug the adapter into coupler for connection. One-hand operation saves the connection time and improve efficiency. The Nitto type quick coupler is manufactured in heat-treated hardened steel for better durability. Steel is hard and resilient with more damage resistance than softer metals and a wide range of working temperature. Special heat treatment and black oxidation finish meet military standard, which provides high corrosion resistance.
● The standard push-to-connect fittings that screws onto air tools with corresponding threaded air inlet terminal to establish a secure, positive connection to the air line (when used with an appropriate coupling).
● The Nitto air coupler provides greater airflow characteristics for the larger air tool applications in garage and tire shop environments. The built-in valve design lower the pressure loss and increase flow rate, and stainless steel ball and retainer prolong the service time. The Nitto type quick coupler is the female end of coupling sets. They are coupled with Nitto style air nipples / plugs to connect pneumatic tools.
● The Nitto air coupler are compatible with Nitto equivalent series.
● Applied for air compressors, pneumatic tools and air lines in workshop.
● Nominal bore diameter: 7.5mm (body size: 1/4)
● Connecting type: BSPT male thread, BSPT female thread, hose barb and hose guard nut.
● Max. air pressure: 15 bar / 218 PSI
● Max. working temperature: -20°~ +120°C / -4°~ +250°F
● Minimum Order Quantity: 2,000pcs / item
Language:
