Current Location:Home > Products > Air Chucks

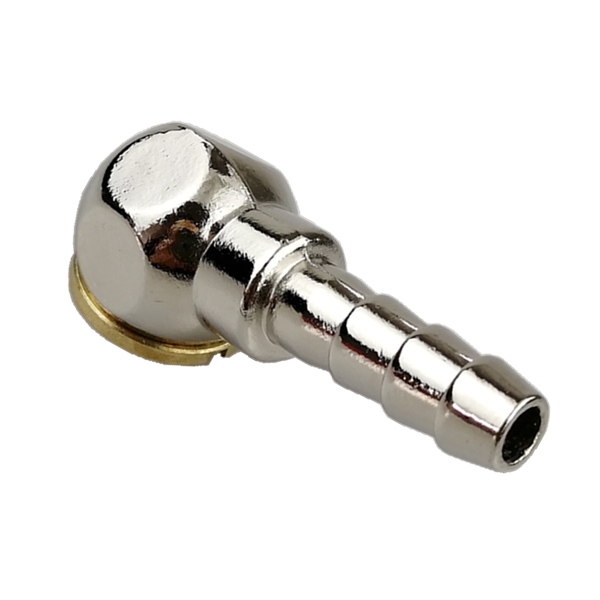

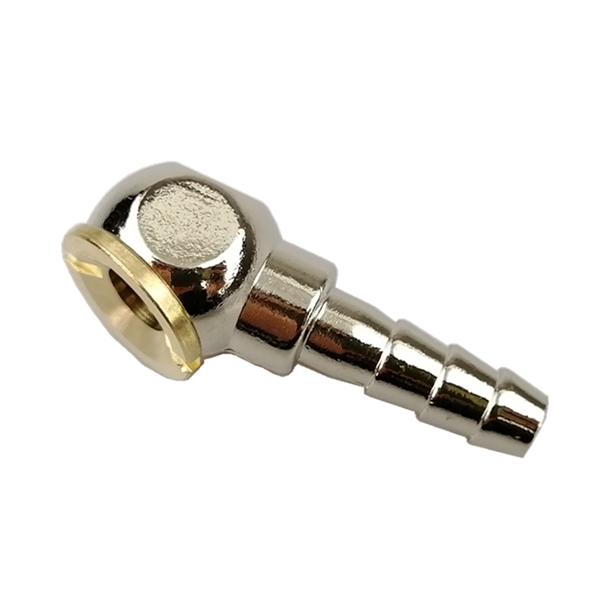

Ball Foot Chuck

Part # AC2098

●  Ball foot chuck is designed to mount directly to Schrader valve stem, such as tire valve, air tank.

●  The ball foot chuck is constructed with a built-in shut-off valve to stop airflow when chuck is not in use, and air flows only when the unit is engaged with valve stem.

●  Hose barb is suitable for 1/4″ inner diameter hose.

●  Ball foot chuck features Zinc alloy body with chrome plated, which provides more sturdy, corrosion resistance and wear resistance. Brass cap and valve makes it more durable even there is moistures in compressed air.

●  Maximum air pressure of 150 pounds per square inch or 10 Bar.

●  Open type for inflator gauge is also available. Close type is only for air line.

●  Minimum order quantity: 2,000pcs.

Product Detail

This ball air chuck is perfect for filling tires in the automotive workshop or home garage. The built-in shut-off valve will shut down the air flow and inflate only the chuck engaged with tire valve stem. The angled ball foot air chuck fits easily on most Schrader valve stems to quickly and efficiently air up your tires. It is also suitable for filling your air tank, and necessary fitting for your air compressor or air line. This is a handy accessory for your tire inflator to pump new air in tires for your car, truck, bike, RV or trailer.

Ball foot chuck

Maximum 150 psi / bar air line pressure

Zinc alloy construction with chrome plate for high strength, anti-wear and durable in using to meet rigid requirement from professional customers, like auto mechanic, service technician, construction professional, and farmer alike

Long hose bard for better connection with air hose 1/4” ID

Brass valve corn to ensure long service life without corrosion

Open flow type: chuck does not have it’s own shut-off valve and will not work without an inflator gauge which is intended to regulate the air flow. Open type is not recommended to directly connect to air compressors, air tanks that without air valve.

Closed / sealing type: chuck will shut off air flow when not on valve stem. Closed / sealing type is not suitable for tire gauge or tire inflators


Part Number AC2098 Hose ID 1/4″ / 6.25mm
Maximum Pressure 150 PSI / 10 Bar Body Material Zinc alloy
Flow Type Closed (optional: open flow) Valve Material Brass
Included No additional components or accessories are included Mounting Type Plug-on
