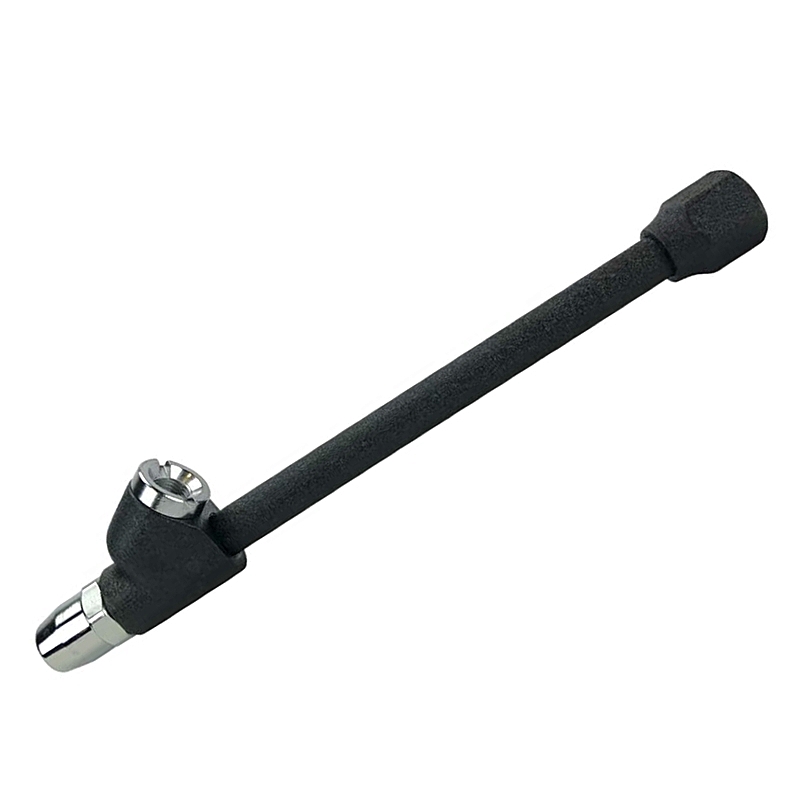

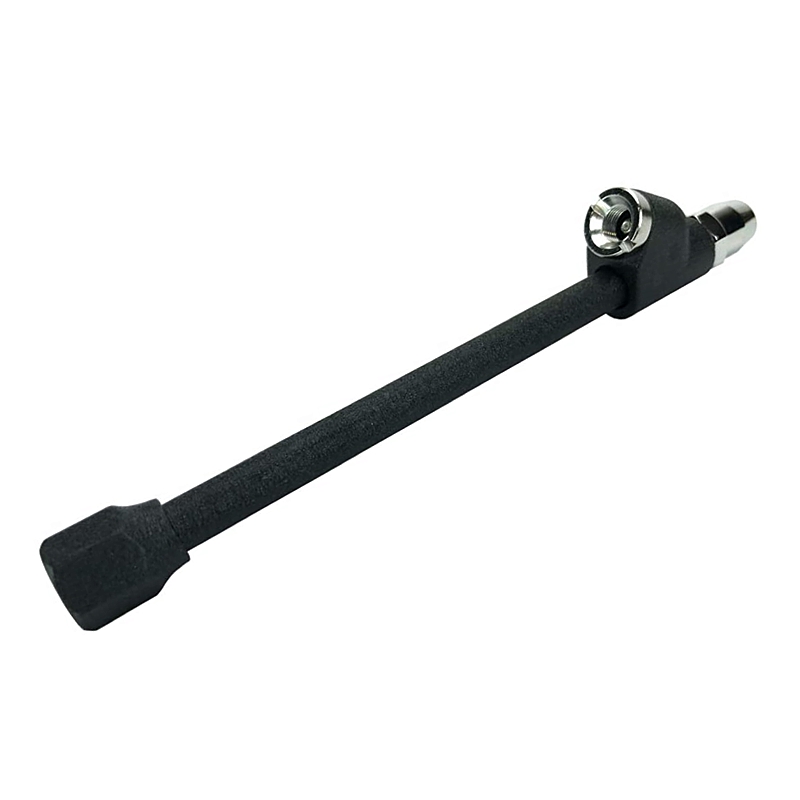

Lock On Tire Air Chuck

Part # AC2073

●  Revers angle dual head lock-on air chuck fits standard automotive wheel with Schrader valves and can be applied to fill a variety of tires, including car, van, bus, pick-up, tractor, truck and heavy vehicle.

●  The angled push-pull chuck has 2 connection points: straight head is specially designed for inner/single wheels valves whose stem is outwards, and 30 degree reverse head for outer wheels whose valve stem is inwards. So it can access hard-to-reach valves.

●  The angled air chuck has the option of a closed or open flow type. The closed type is constructed with built-in shut-off valve to hold air back until it is pressed onto a valve stem. This should be used with air compressors or air supply systems without a valve between the air source and the tire chuck. When used as the inflating tip for a tire inflator or tire gauge, it has to be the open flow type air chuck so that your inflator or gauge will not be broken.

●  The dual head is made of zinc alloy, and steel cap with chrome plated which offers better corrosion resistance.

●  The 6 inch / 150mm long stem and dual head chuck body is coated with polyurethane for rust free and help you to reach inner wheels while keep your hands clean.

●  Max pressure of 150 pounds per square inch

●  The inlet features 1/4” NPT female thread with 5/8” or 16mm hexagon terminal, compatible with any air source with relative male thread adaptors.

●  Both straight head and angled reverse head could lock onto tire valve thread.

Product Detail

Extended dual head straight foot air chuck for general commercial and industrial tire inflation applications.

Deep well lock that holds the chuck in place when tilted for hands free inflation.

6” / 150mm long extension stem allows you to access hard to reach dually wheels valves.

Dual head design is compatible with dual wheels: straight for inner or single and 30 degree reverse outer, that could be applied for big range of vehicles: cars, buses, trucks, pick-up and heavy vehicles etc.

Chrome-plated construction for protection against corrosion.

1/4″ female NPT or BSP inlet could be coupled with most air hose or air line.

The tire chuck adopts a lock-on chuck design, both ends of dual head chuck could lock on valve thread, no need to thread the chuck onto valve stems.

Part Number AC2073 Inlet 1/4″ NPT / BSPT Female
Maximum Pressure 150 PSI / 10 Bar Material Steel, Zinc
Length 6″ / 150mm Mounting Type Lock on valve thread
Flow Type Closed (optional: open flow) Included No additional components or accessories are included
