Nitto Style Air Coupler

●  The Nitto air coupler features simple and secure push-to-connect (single action) design, just plug the adapter into coupler for connection. One-hand operation saves the connection time and improve efficiency. The Nitto type quick coupler is manufactured in heat-treated hardened steel for better durability. Steel is hard and resilient with more damage resistance than softer metals and a wide range of working temperature. Special heat treatment and black oxidation finish meet military standard, which provides high corrosion resistance.

●  The standard push-to-connect fittings that screws onto air tools with corresponding threaded air inlet terminal to establish a secure, positive connection to the air line (when used with an appropriate coupling).

●  The Nitto air coupler provides greater airflow characteristics for the larger air tool applications in garage and tire shop environments. The built-in valve design lower the pressure loss and increase flow rate, and stainless steel ball and retainer prolong the service time. The Nitto type quick coupler is the female end of coupling sets. They are coupled with Nitto style air nipples / plugs to connect pneumatic tools.

●  The Nitto air coupler are compatible with Nitto equivalent series.

●  Applied for air compressors, pneumatic tools and air lines in workshop.

●  Nominal bore diameter: 7.5mm (body size: 1/4)

●  Connecting type: BSPT male thread, BSPT female thread, hose barb and hose guard nut.

●  Max. air pressure: 15 bar / 218 PSI

●  Max. working temperature: -20°~ +120°C / -4°~ +250°F

●  Minimum Order Quantity: 2,000pcs / item

Product Detail

The Nitto type quick coupler adopts single action design and help you quickly switch between different air tools and accessories. The spring load valve and stainless steel ball & retainers ensure longer span time. It is a must have air fittings for pneumatic tools, air compressors, air blow guns and air hoses etc, and widely used in light engineering environments. The Nitto type quick coupler features hardened steel construction with special military level heat treatment and finish. The hose guard nut is unique design to prevent hose kinking and no hose clamp required. The Nitto type quick coupler interchange with equivalent Nitto plugs. Recommended to use Teflon tape.

Body Size
(Nominal Bore Dia)
Connection Type Part Number Material

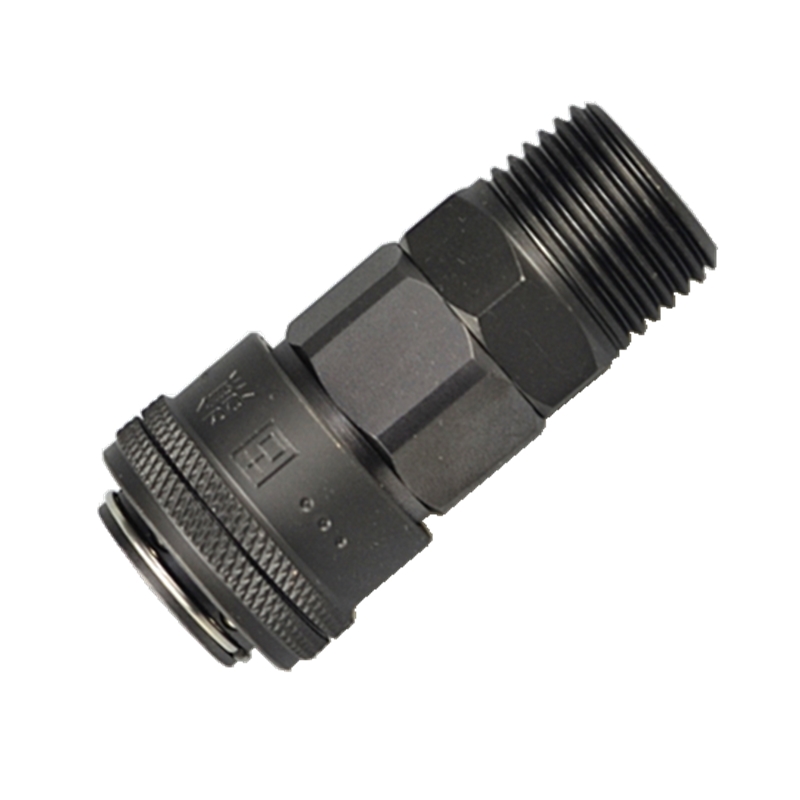

1/4 (7.5mm) 1/4 BSPT, Male Thread ACJPS22M Steel
1/4 (7.5mm) 3/8 BSPT, Male Thread ACJPS23M Steel
1/4 (7.5mm) 1/2 BSPT, Male Thread ACJPS24M Steel
1/4 (7.5mm) 1/4 BSPT, Female Thread ACJPS22F Steel
1/4 (7.5mm) 3/8 BSPT, Female Thread ACJPS23F Steel
1/4 (7.5mm) 1/2 BSPT, Female Thread ACJPS24F Steel

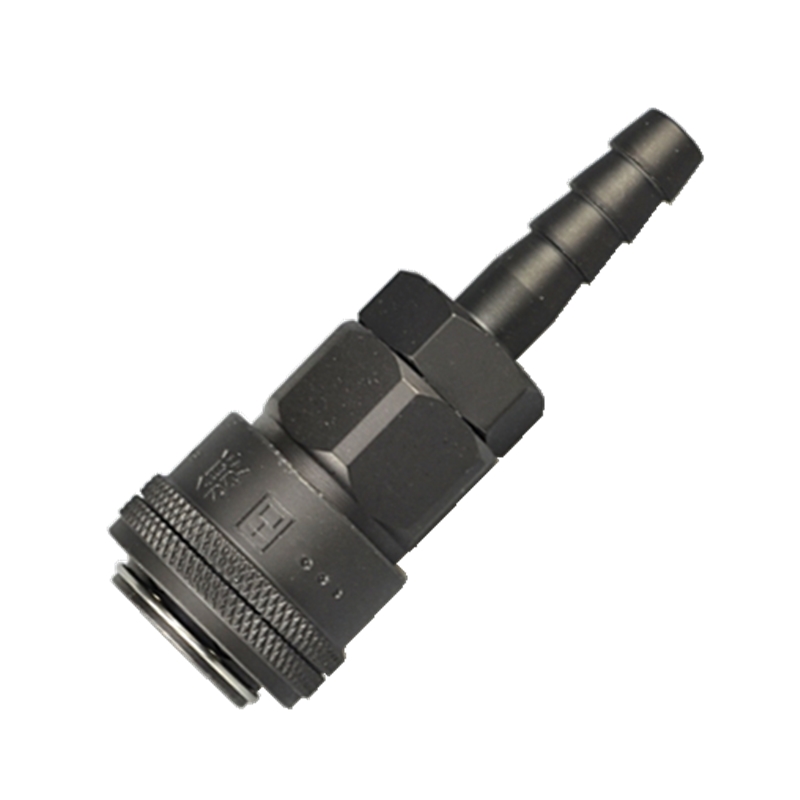

1/4 (7.5mm) 8mm / 5/16 Hose I.D., Barb ACJPS8MMH Steel
1/4 (7.5mm) 10mm / 3/8 Hose I.D., Barb ACJPS10MMH Steel
1/4 (7.5mm) 12mm / 1/2 Hose I.D., Barb ACJPS12MMH Steel

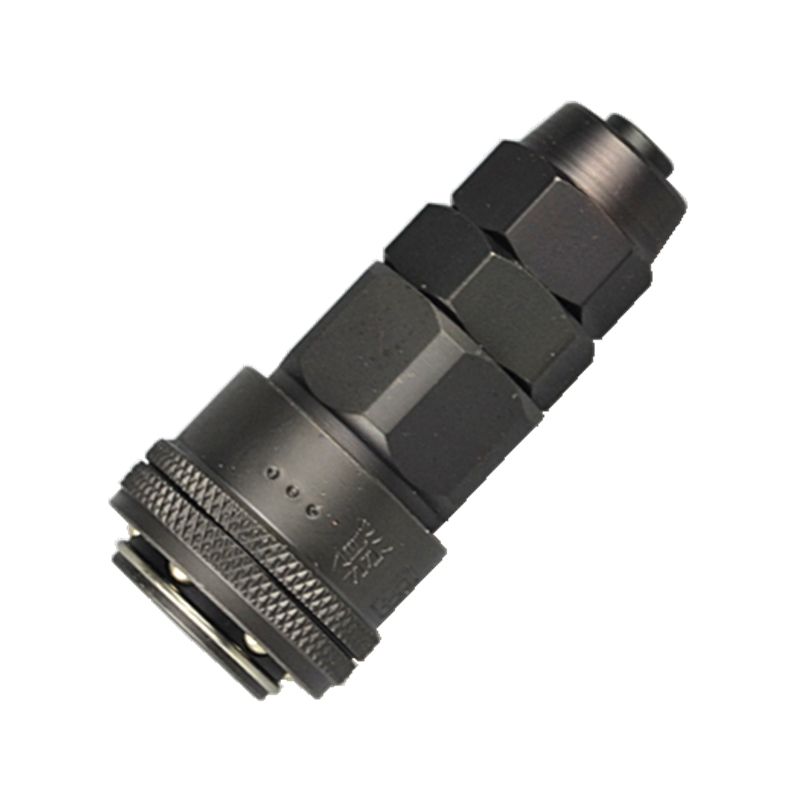

1/4 (7.5mm) Φ5 x Φ8mm Hose, Guard Nut ACJPSS8MMP Steel
1/4 (7.5mm) Φ6.5 x Φ10mm Hose, Guard Nut ACJPS10MMP Steel
1/4 (7.5mm) Φ8 x Φ12mm Hose, Guard Nut ACJPS12MMP Steel
