UK Style Air Coupling Adapter

●  The UK style air coupling adapter are manufactured in heat-treated hardened steel for better durability. Steel is hard and resilient with more damage resistance than softer metals and a wide range of working temperature, and Zinc-plated finish provides high corrosion resistance.

●  The standard push-fit adapter that screws onto air tools with corresponding threaded air inlet terminal to establish a secure, positive connection to the air line (when used with an appropriate coupling).

●  The air coupling adapter feature greater airflow characteristics for the larger air tool applications in garage and tire shop environments. The increased flow results in greater tool efficiency and decreased air costs. The air adapter are the male end of coupling sets. They are coupled with UK style air couplings (female ends) to connect pneumatic tools.

●  The UK style air coupling adapter are compatible with Cejn 295 and Rectus 19.

●  Applied for air compressors, pneumatic tools and air lines in workshop.

●  Connecting type: BSPT male thread, BSPT female thread and hose tailpiece.

●  Max. air pressure: 14 bar / 200 PSI

●  Max. working temperature: -20°~ +120°C / -4°~ +250°F

●  Minimum Order Quantity: 2,000pcs / item

Product Detail

The UK style air coupling adapter help you quickly switch between different air tools and accessories. It is a must have air fittings for pneumatic tools, air compressors, air blow guns and air hoses etc, and widely used in light engineering environments. The fittings feature hardened steel construction with corrosive resistant finish. The UK style air coupling adapters interchange with standard UK couplings, Cejn 295 and Rectus 19. Recommended to use Teflon tape.


Body Size Connection Type Part Number Material

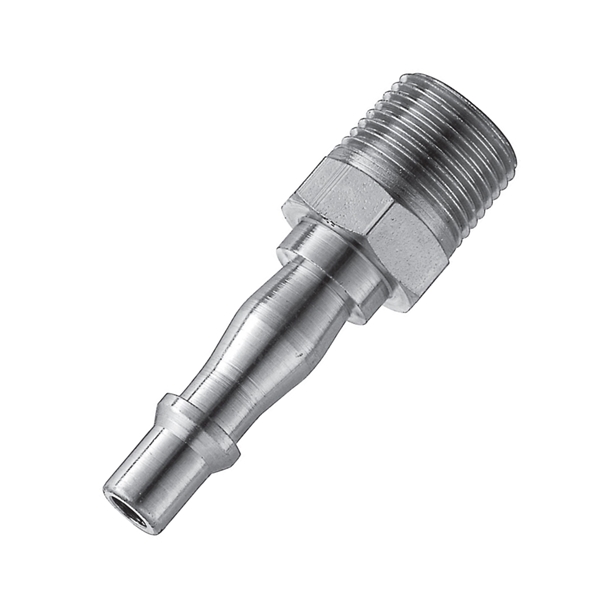

1/4 1/4 BSPT, Male Thread APUKS22M Steel
1/4 3/8 BSPT, Male Thread APUKS23M Steel
1/4 1/2 BSPT, Male Thread APUKS24M Steel

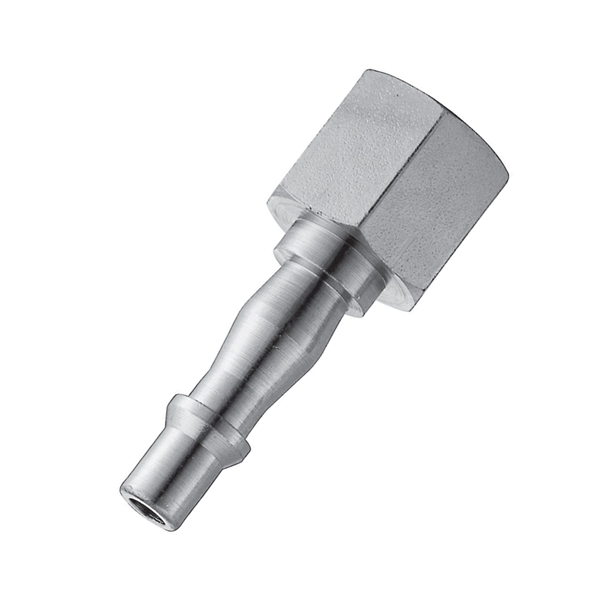

1/4 1/4 BSPT, Female Thread APUKS22F Steel
1/4 3/8 BSPT, Female Thread APUKS23F Steel
1/4 1/2 BSPT, Female Thread APUKS24F Steel

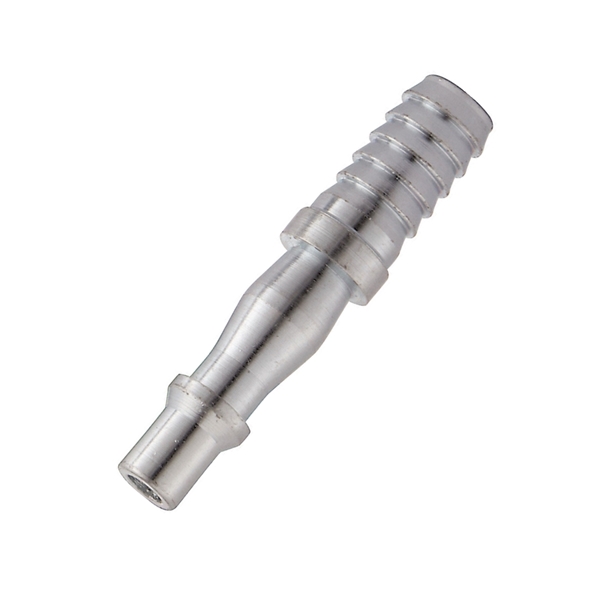

1/4 6mm / 1/4 Hose I.D., Tailpiece APUKS22H Steel
1/4 8mm / 5/16 Hose I.D., Tailpiece APUKS8MMH Steel
1/4 10mm / 3/8 Hose I.D., Tailpiece APUKS23H Steel
1/4 13mm / 1/2 Hose I.D., Tailpiece APUKS24H Steel
