High Flow Style / European Air Coupler Plug

●  The high flow or V style Air Coupler Plug has more than 2 times larger flow area than standard industrial interchange fittings. The increased flow results in greater tool efficiency and decreased air costs. The nipples are made of solid brass for better durability, and steel material is also available. Steel is hard and resilient with more damage resistance than softer metals and a wide range of working temperature, and Zinc-plated finish provides high corrosion resistance.

●  High flow air hose fittings are the male end of coupling sets, also called quick-connect air coupling plugs or nipples. They are inserted into the V style air coupler bodies (female ends) to connect pneumatic tools.

●  The high flow or V style Air Coupler Plug is interchangeable with Germany style couplings DN7.2 – 7.8, Cejn 320, Legris 25/26, Norgren 234/238, Rectus 25/26, Schrader InterCheck 35.

●  Applied for air compressors, pneumatic tools and use only in air workshop.

●  1/4 & 3/8 basic flow size

●  Connecting type: NPT male thread, NPT female thread and hose barb.

●  Max. air pressure: 300 PSI

●  Max. working temperature: -40°~ +120°C / -40°~ +250°F

●  Seal Material: Nitrile

●  Minimum Order Quantity: 2,000pcs / item

Product Detail

The high flow or V style Air Coupler Plug helps you quickly switch between different air tools and accessories. It is a must have air fittings for pneumatic tools, air compressors, air blow guns and air hoses etc, and widely used in systems such as air compressors, automated manufacturing operations, air craft control and automotive workshop. The high flow style, or European style / V style, interchanges with a common high flow European couplings: 1/4 body size interchange with DN7.2 – 7.8, CEJN 320, Rectus 25; 3/8 body size interchange with DN10, Rectus 27 and CEJN 410. Both steel and brass material are available. The solid brass construction provides high corrosion resistance and prolong service span. Protective shoulder helps to avoid dirt penetration. Integral sleeve guard resists accidental disconnection. Recommended to use Teflon tape.


Body Size Connection Type Part Number Material

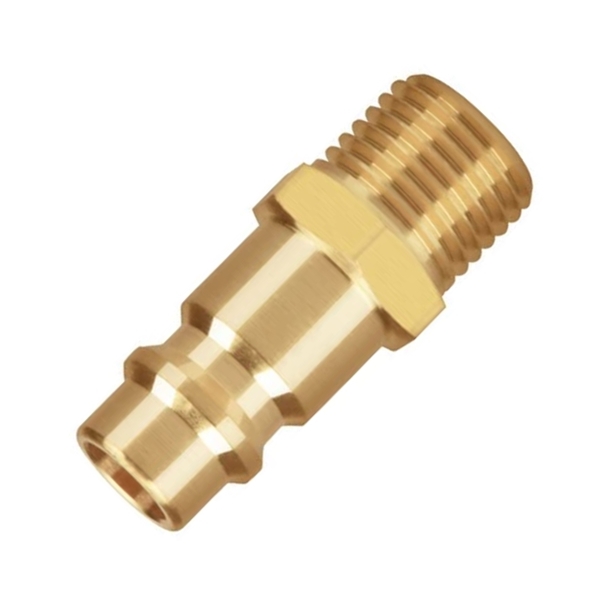

1/4 1/4 NPT or BSP, Male Thread APEU22M Brass, Steel

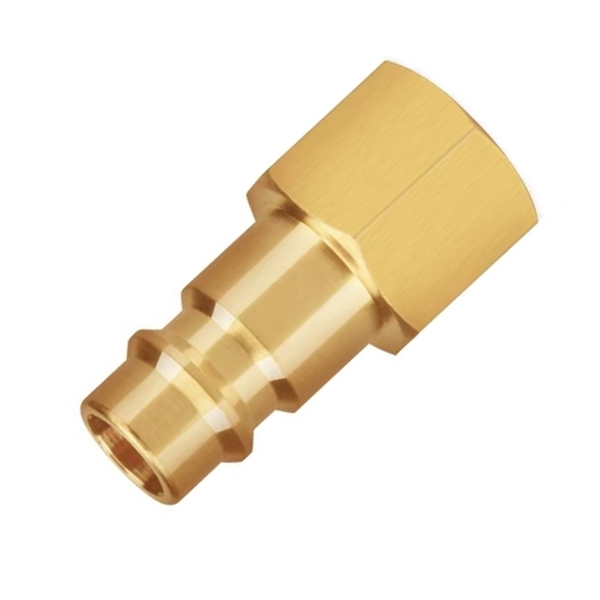

1/4 1/4 NPT or BSP, Female Thread APEU22F Brass, Steel
1/4 3/8 NPT or BSP, Male Thread APEU23M Brass, Steel
1/4 3/8 NPT or BSP, Female Thread APEU23F Brass, Steel
1/4 1/4 or 6mm Hose I.D., Barbed APEU22H Brass, Steel
1/4 8mm Hose I.D., Barbed APEU28MMH Brass, Steel
1/4 3/8 or 10mm Hose I.D., Barbed APEU23H Brass, Steel
3/8 1/4 NPT or BSP, Male Thread APEU32M Brass, Steel
3/8 1/4 NPT or BSP, Female Thread APEU32F Brass, Steel
3/8 3/8 NPT or BSP, Male Thread APEU33M Brass, Steel
3/8 3/8 NPT or BSP, Female Thread APEU33F Brass, Steel
3/8 1/2 NPT or BSP, Male Thread APEU34M Brass, Steel
3/8 1/2 NPT or BSP, Female Thread APEU34F Brass, Steel
3/8 8mm Hose I.D., Barbed APEU38MMH Brass, Steel
3/8 3/8 or 10mm Hose I.D., Barbed APEU33H Brass, Steel
3/8 1/2 or 13mm Hose I.D., Barbed APEU34H Brass, Steel
