Current Location:Home > Products > Air Couplers

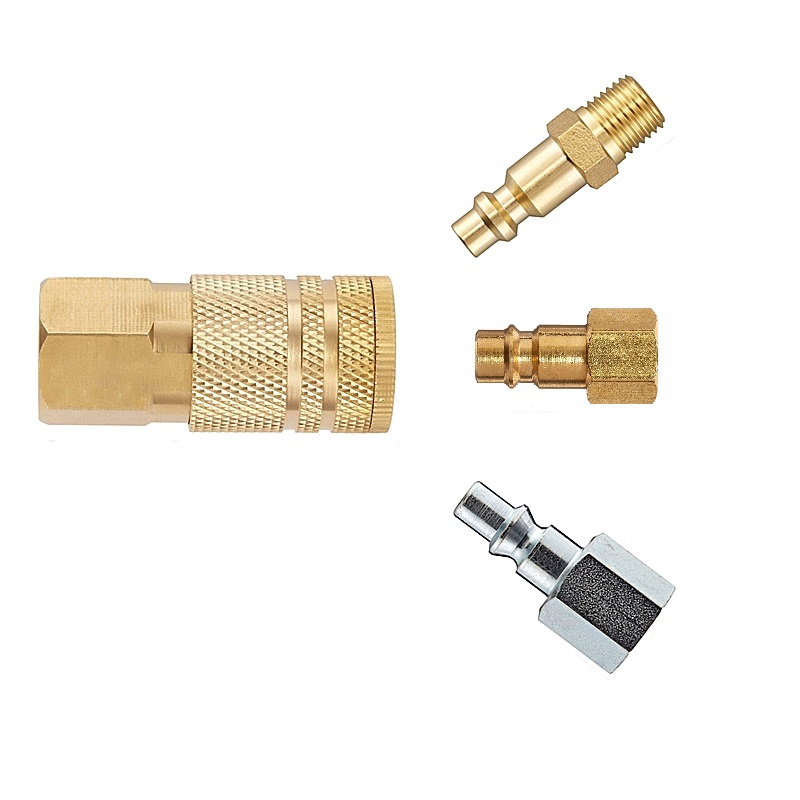

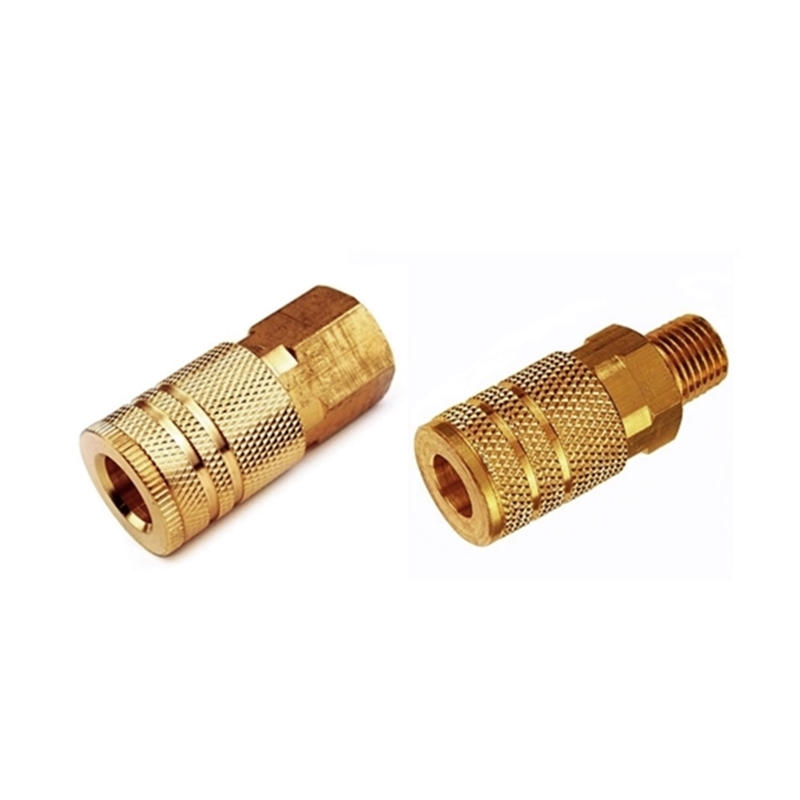

Universal Quick Coupler – Industrial, High Flow / European, ARO

●  The high flow Universal Quick Coupler is made of solid brass, which has better durability.

●  It accepts three types of nipples: Industrial Interchange, High Flow / V style or European style and ARO style.

●  The high flow Universal Quick Coupler allows multiple series nipples to mate with one coupler.

●  The universal air fitting in steel material is available. Steel is hard, and has higher damage resistance and a wide operating temperature range than soft metals. The galvanized surface provides high corrosion resistance.

●  Applied for air compressors, pneumatic tools and drop down air lines.

●  1/4 basic flow size

●  Connecting type: NPT male thread, NPT female thread.

●  Max. air pressure: 300 PSI

●  Max. working temperature: -40°~ +120°C / -40°~ +250°F

●  Seal Material: Nitrile

●  Minimum Order Quantity: 2,000pcs / item

Product Detail

The universal air quick coupler can help you quickly switch between different pneumatic tools and accessories. It is a necessary air fitting for pneumatic tools, air compressors, air blowing guns, air pipes, etc. It is widely used in air compressors, automated manufacturing operations, aircraft control, automobile workshops and other systems.

The high flow Universal Quick Coupler adapts to 3 style air coupler plugs: industrial / M style, High Flow / V style (European style), and ARO style. Both steel and brass material are available.

The solid brass structure provides high corrosion resistance and extended service life. Protecting the shoulders helps prevent dirt from penetrating. One-piece sheath prevents accidental disconnection. Teflon tape is recommended.

Body Size Connection Type Part Number Material
1/4 1/4-18 NPT Male Thread ACUEU22M Brass, Steel
1/4 1/4-18 NPT Female Thread ACUEU22F Brass, Steel
1/4 3/8-18 NPT Male Thread ACUEU23M Brass, Steel
1/4 3/8-18 NPT Female Thread ACUEU23F Brass, Steel
