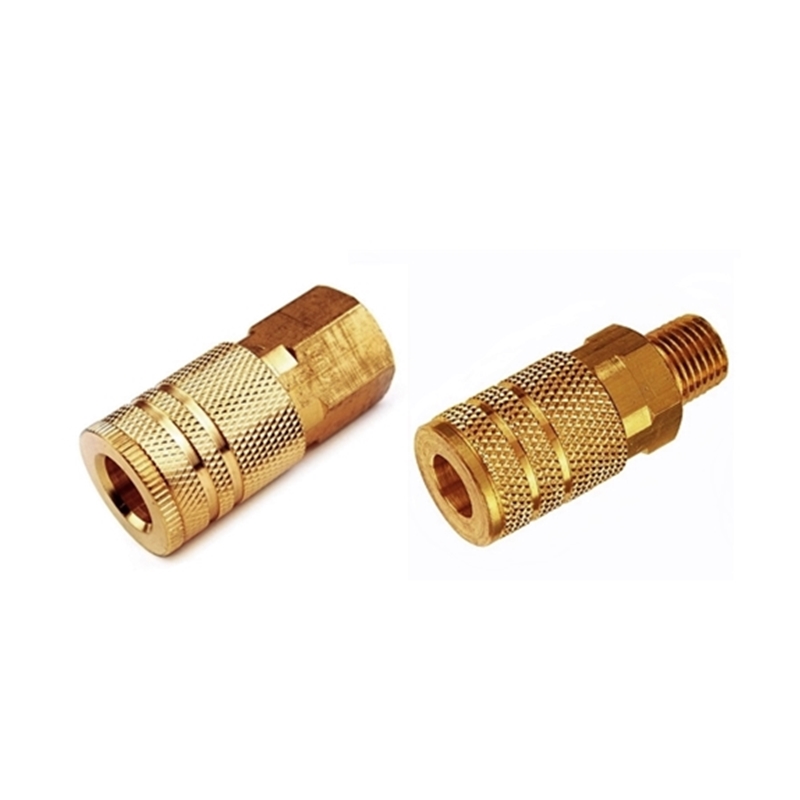

Universal Air Coupler – Industrial, Automotive, ARO

●  The Universal Air Coupler is made of solid brass for better durability.

●  It accepts three types of nipples: Industrial Interchange, Automotive / Tru-Flate style and ARO style.

●  The Universal Air Coupler permits multiple series nipples to mate with one coupler.

●  The universal air fitting in steel material is available. Steel is hard and resilient with more damage resistance than softer metals and a wide range of working temperature, and Zinc-plated finish provides high corrosion resistance.

●  Applied for air compressors, pneumatic tools and drop down air lines.

●  1/4 basic flow size

●  Connecting type: NPT male thread, NPT female thread.

●  Max. air pressure: 300 PSI

●  Max. working temperature: -40°~ +120°C / -40°~ +250°F

●  Seal Material: Nitrile

●  Minimum Order Quantity: 2,000pcs / item

Product Detail

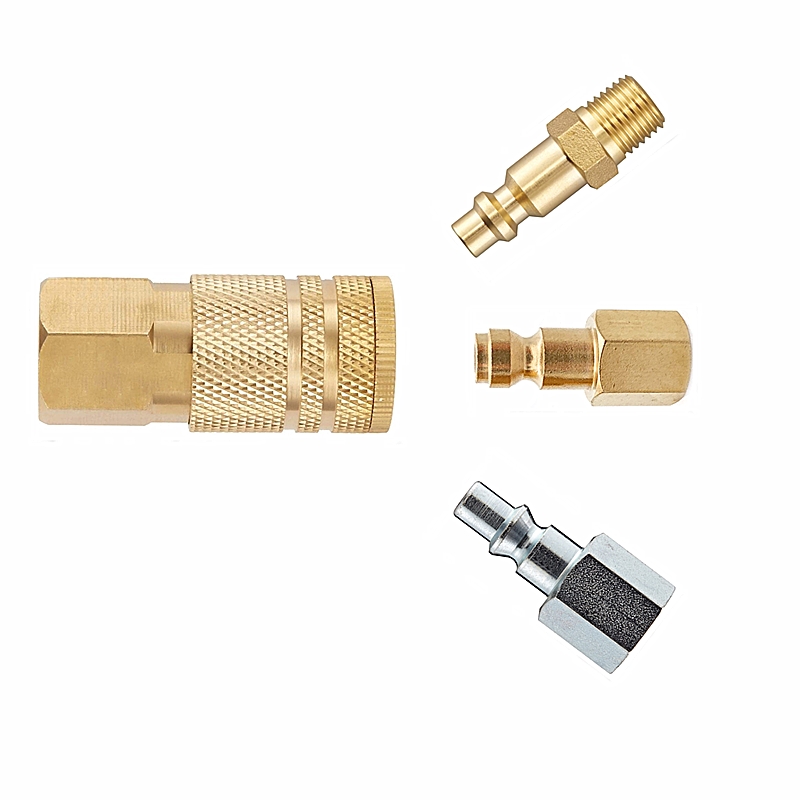

The universal air fitting helps you quickly switch between different air tools and accessories. It is a must have air fittings for pneumatic tools, air compressors, air blow guns and air hoses etc, and widely used in systems such as air compressors, automated manufacturing operations, air craft control and automotive workshop. The Universal Air Coupler adapts to 3 style air coupler plugs: industrial / M style, automotive / Tru-flate, and ARO style. Both steel and brass material are available. The solid brass construction provides high corrosion resistance and prolong service span. Protective shoulder helps to avoid dirt penetration. Integral sleeve guard resists accidental disconnection. Recommended to use Teflon tape.

Body Size Connection Type Part Number Material
1/4 1/4-18 NPT Male Thread ACUUS22M Brass, Steel
1/4 1/4-18 NPT Female Thread ACUUS22F Brass, Steel
1/4 3/8-18 NPT Male Thread ACUUS23M Brass, Steel
1/4 3/8-18 NPT Female Thread ACUUS23F Brass, Steel
