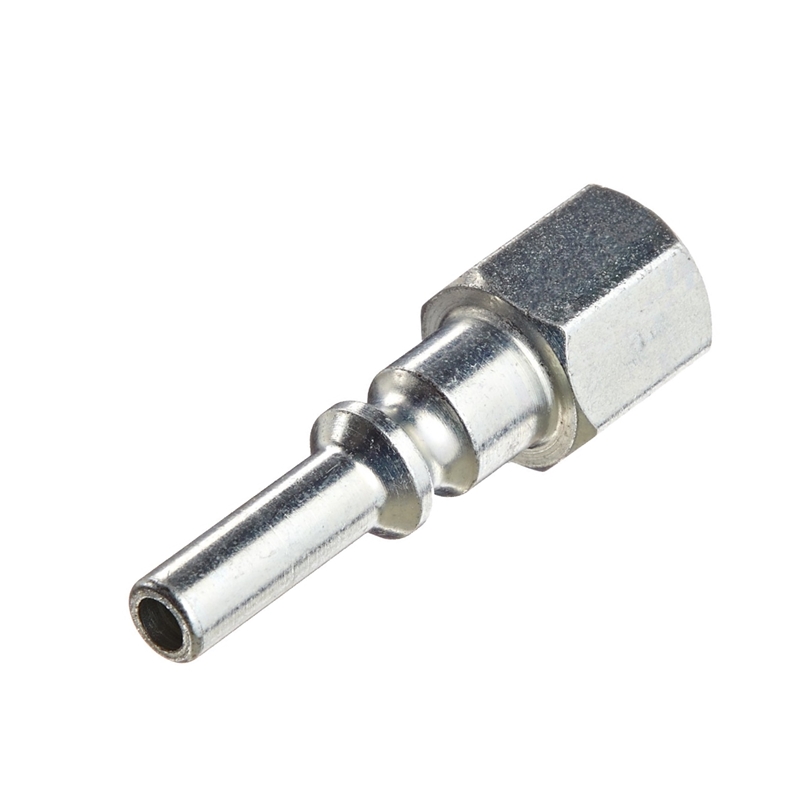

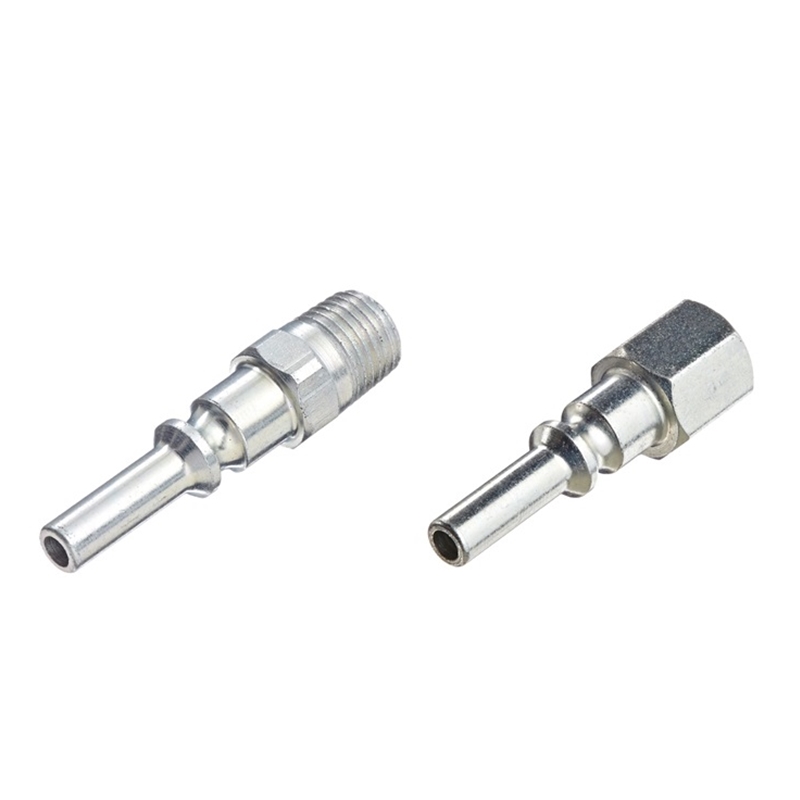

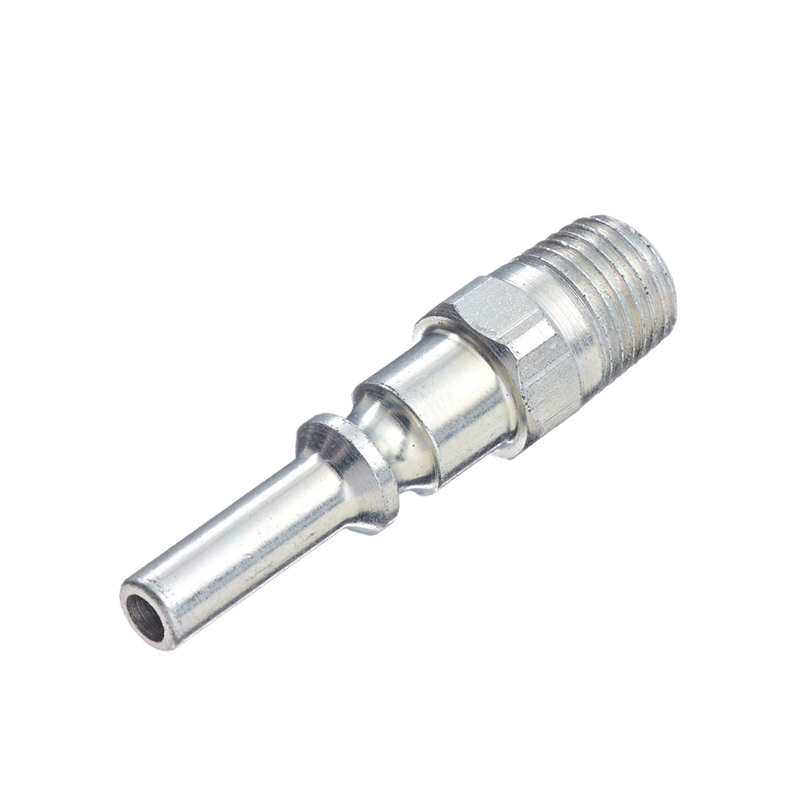

Lincoln Style Air Coupler Plug

●  The Lincoln or L style long nose interchange Air Coupler Plug is made of harden steel.

●  Lincoln style air fitting are the male end of coupling sets, also called quick-connect air coupling plugs or nipples. They are inserted into the Lincoln air coupler bodies (female ends) to connect pneumatic tools. Steel is hard and resilient with more damage resistance than softer metals and a wide range of working temperature, and Zinc-plated finish provides high corrosion resistance.

●  The Lincoln style air fitting is interchangeable with Lincoln Interchange’s long stem series.

●  Applied for air compressors, pneumatic tools and use only in air workshop.

●  1/4 basic flow size

●  Connecting type: NPT male thread, NPT female thread.

●  Max. air pressure: 300 PSI

●  Max. working temperature: -40°~ +120°C / -40°~ +250°F

●  Seal Material: Nitrile

●  Our Lincoln style Air Coupler Plug is also available in material brass on request.

●  Minimum Order Quantity: 2,000pcs / item

Product Detail

The Lincoln style Air Coupler Plug helps you quickly switch between different air tools and accessories. It is a must have air fittings for pneumatic tools, air compressors, air blow guns and air hoses etc, and widely used in systems such as air compressors, automated manufacturing operations, air craft control and automotive workshop. The Lincoln style is compatible with L couplers. Both steel and brass material are available. The solid brass construction provides high corrosion resistance and prolong service span. Protective shoulder helps to avoid dirt penetration. Integral sleeve guard resists accidental disconnection. Recommended to use Teflon tape.

Body Size Connection Type Part Number Material
1/4 1/4-18 NPT Male Thread APL22M Steel
1/4 1/4-18 NPT Female Thread APL22F Steel
1/4 3/8-18 NPT Male Thread APL23M Steel
1/4 3/8-18 NPT Female Thread APL23F Steel
