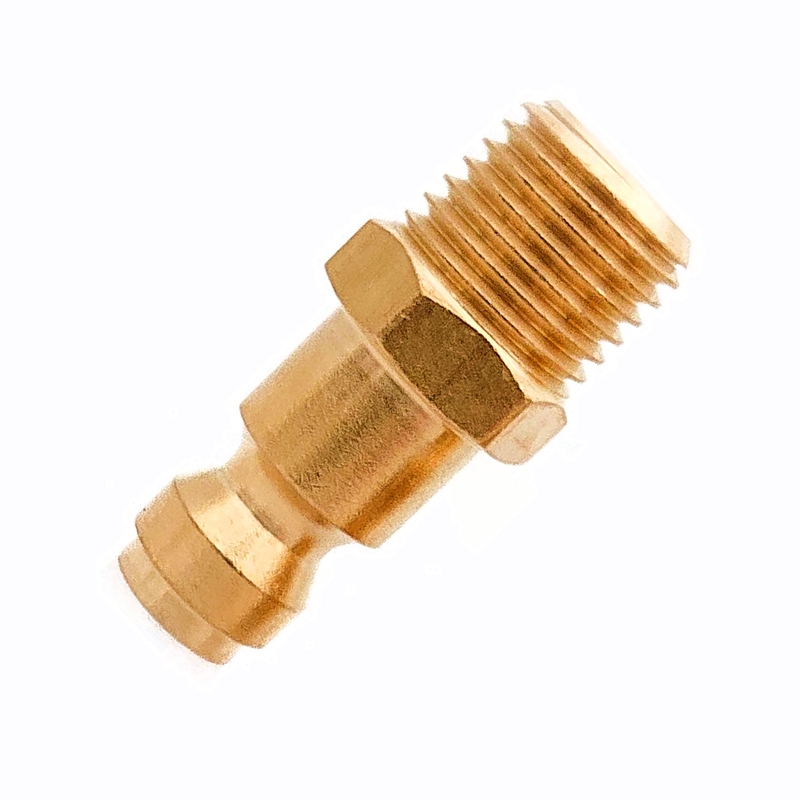

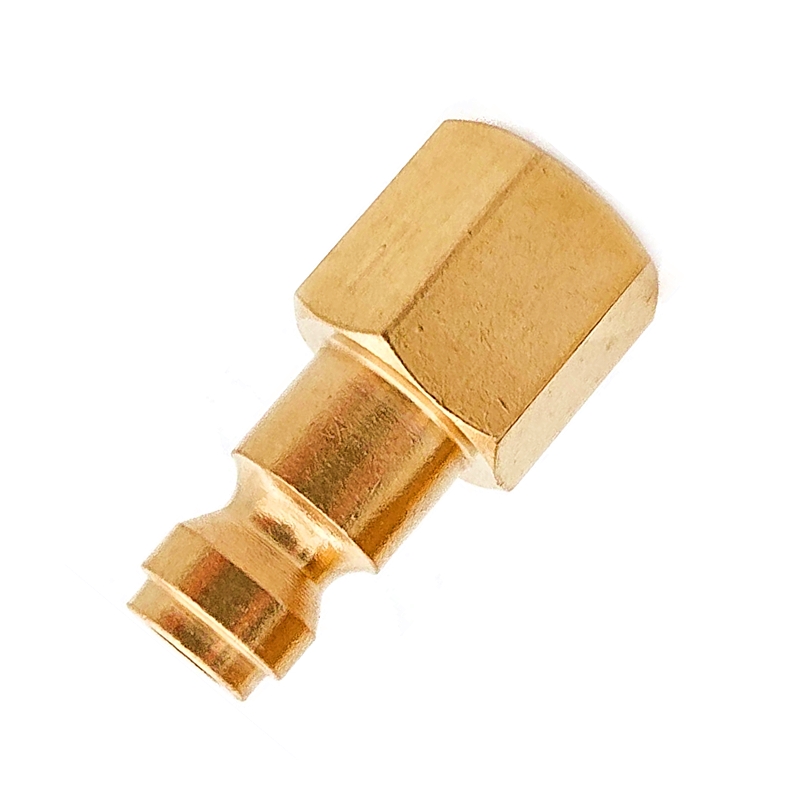

Tru-Flate Style / Automotive Air Coupler Plug

●  The Tru-Flate style Air Coupler Plug, commonly referred to as automotive interchange, is made of solid brass for better durability.

●  Our fittings are interchangeable with similar couplers manufactured to the same standard.

●  Applied for air compressors, pneumatic tools, water, grease, paint etc.

●  Body size includes 1/4 and 3/8

●  Connecting type: NPT male thread, NPT female thread, hose barb.

●  Max. air pressure: 300 PSI

●  Max. working temperature of our Air Coupler Plug is up to 120℃ or 250℉

●  Minimum Order Quantity: 2,000pcs / item

Product Detail

Solid brass industrial style Air Coupler Plug helps you quickly switch between different air tools and accessories. It is a must have air fittings for pneumatic tools, air compressors, air blow guns and air hoses etc, and use on professional jobsites, in automotive workshop and garage. The Tru-Flate style, or automotive interchange, is compatible with T and C couplers. The solid brass construction provides high corrosion resistance and prolong service span. Recommended to use Teflon tape.

Body Size Connection Type Part Number Material
1/4 1/4-18 NPT Male Thread APT22M Brass, Steel, Aluminium
1/4 1/4-18 NPT Female Thread APT22F Brass, Steel, Aluminium
1/4 3/8-18 NPT Male Thread APT23M Brass, Steel
1/4 3/8-18 NPT Female Thread APT23F Brass, Steel
1/4 1/4 Hose I.D., Barbed APT22H Brass, Steel
1/4 3/8 Hose I.D., Barbed APT23H Brass, Steel
3/8 1/4-18 NPT Male Thread APT32M Brass, Steel
3/8 1/4-18 NPT Female Thread APT32F Brass, Steel
3/8 3/8-18 NPT Male Thread APT33M Brass, Steel
3/8 3/8-18 NPT Female Thread APT33F Brass, Steel
3/8 1/2-14 NPT Male Thread APT34M Brass, Steel
3/8 1/2-14 NPT Female Thread APT34F Brass, Steel
3/8 3/8 Hose I.D., Barbed APT33H Brass, Steel
3/8 1/2 Hose I.D., Barbed APT34H Brass, Steel
