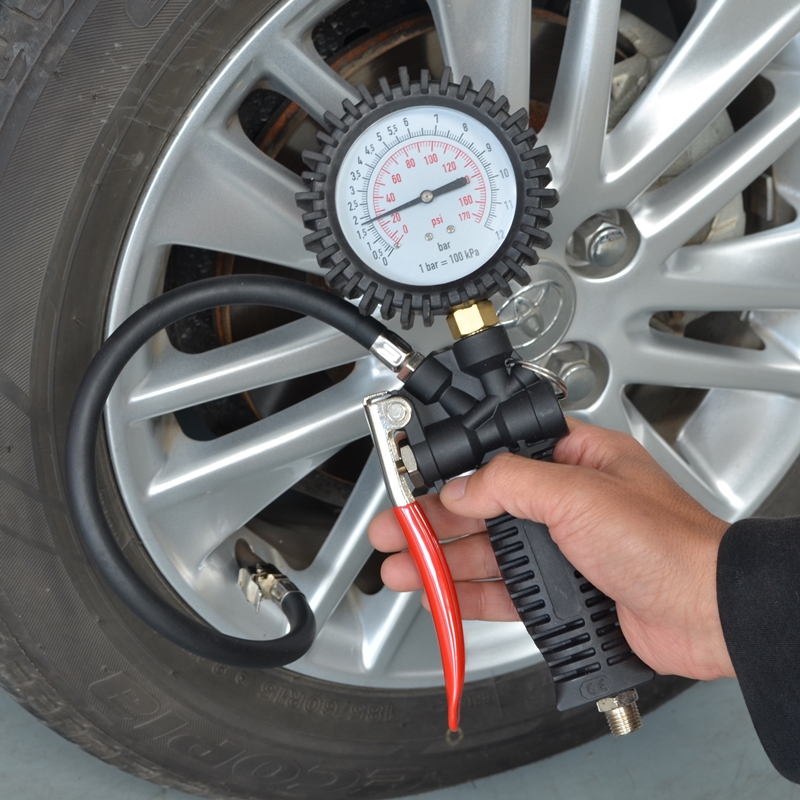

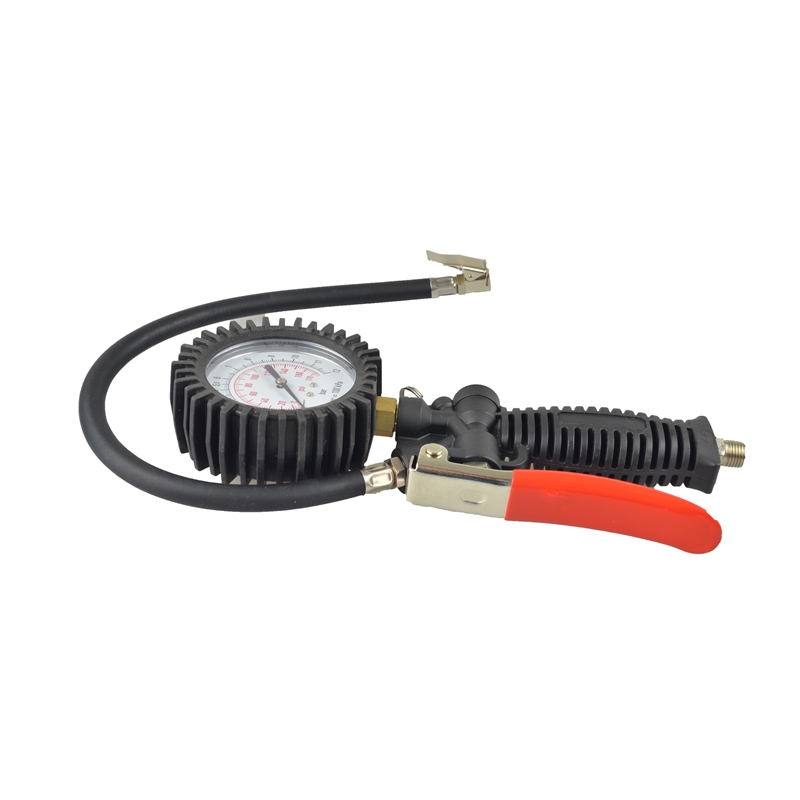

Pistol Grip Tire Inflator with Gauge

Part # 192034

• The pistol grip tire inflator with gauge features steel trigger with PVC cover for slip-resistance
• 86mm(3-3/8“) pressure gauge (0-7 Bar/100psi) with shock resistant rubber boot which protect the gauge from corrosion, shock and impacts
• The pistol grip tire inflator with gauge is constructed with reinforced molded Nylon housing
• The pistol grip tire inflator with gauge equipped with swivel gauges for any angel reading, and could be flat for storage
• Increased safety and reduced tyre-related incidents

Product Detail

Part Number 192034
Reader Unit Dial Gauge
Chuck Type Clip on
Max. Inflation 100psi / 700 kPa / 7 Bar
Scale psi / kPa / Bar
Inlet Size 1/4" NPT / BSP female
Hose Length 15.7"(400mm)
Housing Engineering Plastic
Trigger Plated steel with PVC grip
Accuracy +/- 2%
Dimension(mm) 274 x 104 x 38
Weight 0.5 kgs
Operation inflate, deflate, measure
Max. Airline Pressure 200 psi / 1300 kPa / 13 Bar / 14 kgf
Deflation Valve Combi trigger
Powered by 2 x AAA (included)
