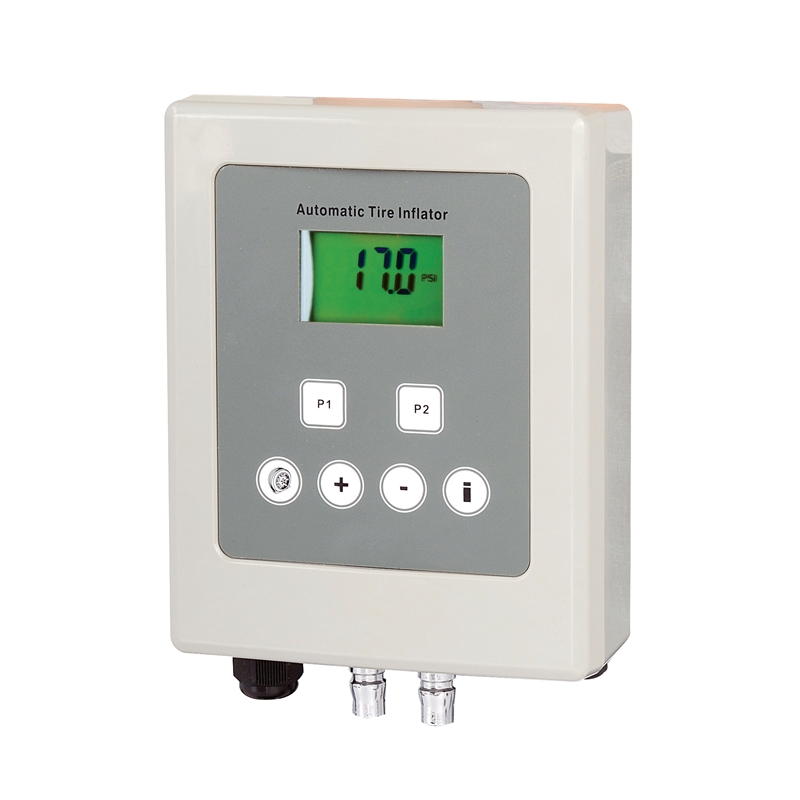

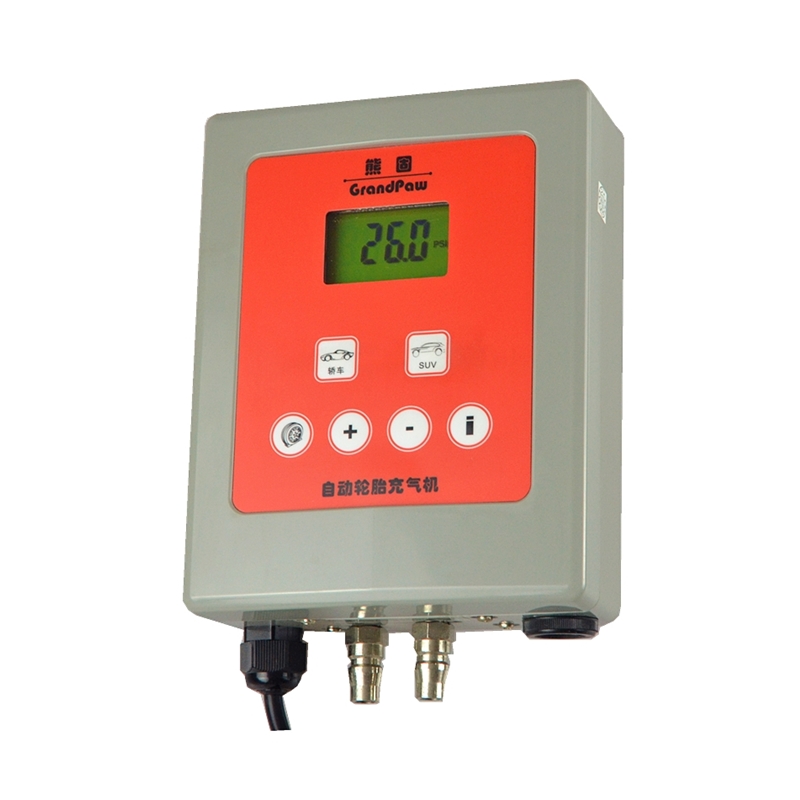

Wall Mounted Automatic Tire Inflator

Part # 192020

• Preset the desired pressure, and the wall mounted automatic tire inflator will fill the tire automatically and stop at preset pressure.

• The wall mounted automatic tire inflator will warn the operator with loud audible signal when the tire has reached the desired pressure.

• Wall-mounted unit with 30’ air hose to easily reach all tires on the vehicle.

• 1/4” inlet and outlet brass adaptor: NPT, BSP or Nitto.

• 4 measurement units (psi, bar, kPa, kg/cm2), Overpressure system, LCD screen & backlight.

• The wall mounted automatic tire inflator is perfect inflation solution for mechanical workshops, tire service center, quick lube centers, rental car facilities and auto dealers.

• International Protection Rating, IP44

• Units are available in 12V, 120V or 240V.

• Inflates accurately with hoses up to 50 m long

Product Detail

Item 192020
Reader Unit Digital LCD display, audible warning
Chuck Type Clip on
Optional Chuck Dual Head Chuck
Housing Engineering Plastic
Scale 145 PSI, 10 Bar, 1,000 kPa
Accuracy +/- 0.3 PSI @ 25 - 75PSI
Operation Auto inflate, deflate
Supply Pressure Max. 182 PSI
Inlet Size 1/4" NPT / BSP female
Hose Length 33 ft (10 M) Recoiled Hose
Advised Application Forecourt, Industrial, Workshops
Supply Voltage AC 110 - 240V(50 - 60Hz), or DC 12V
Wattage 10 W max.
Working Temperature -10 ~ +50
Humidity Range Up to 95% RH non condensing
Inflation Flow 2,000 L/min @ 182 PSI
IP Rate IP44
Dimension 190 x 150 x 70 mm
Weight 4 kgs
