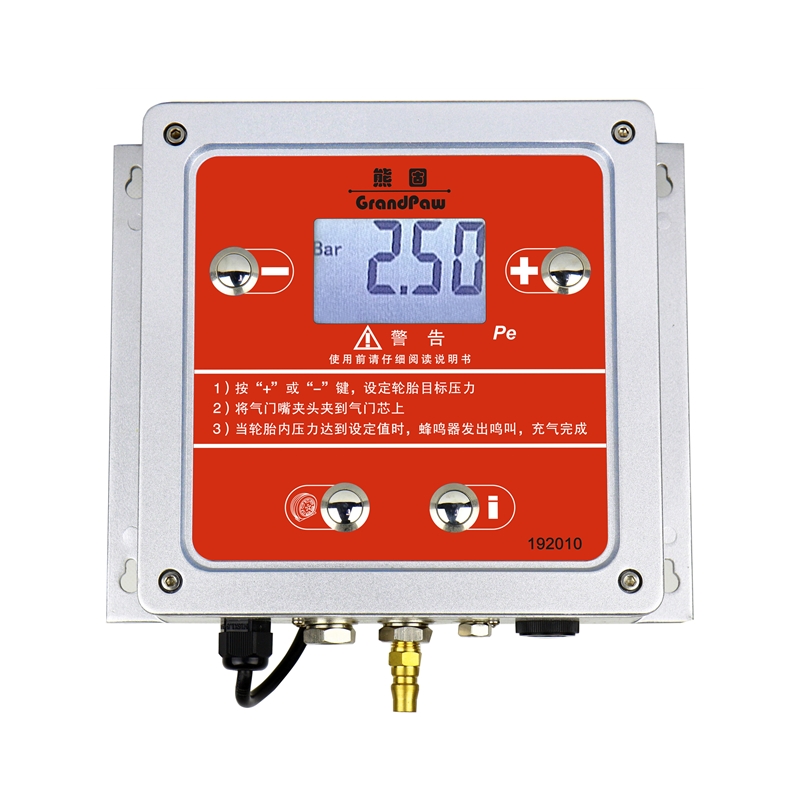

Automatic Tyre Inflator Machine

Part # 192010

• Automatic tyre inflator machine could automatically inflate or deflate to pre-set pressure when attached to tire valve stem.

• A loud audible warning that can be heard in the noisiest areas when reach target tire pressure.

• Supplied with calibration certificate, accuracy exceeds EC Directive 86/217

• Automatic tyre inflator machine is compatible with Nitrogen generator

• 1/4” inlet and outlet brass adaptor: NPT, BSP or Nitto.

• Large backlit LCD display with audible warning

• Automatic tyre inflator machine is the perfect inflation solution for mechanical workshops, tire service center, quick lube centers, rental car facilities and auto dealers.

• International Protection Rating, IP56, provides weather protection.

• Units are available in 12V, 120V or 240V.

• Inflates accurately with hoses up to 50 m long

Product Detail

Item 192010
Reader Unit Digital LCD display, audible warning
Chuck Type Clip on
Optional Chuck Dual Head Chuck
Housing Aluminum Die Casting
Scale 1,200 kPa, 174 PSI, 12 Bar, 12 kg/cm2
Accuracy +/- 0.3 PSI @ 25 - 75PSI
Operation Auto inflate, deflate
Supply Pressure Max. 182 PSI
Inlet Size 1/4" NPT / BSP female

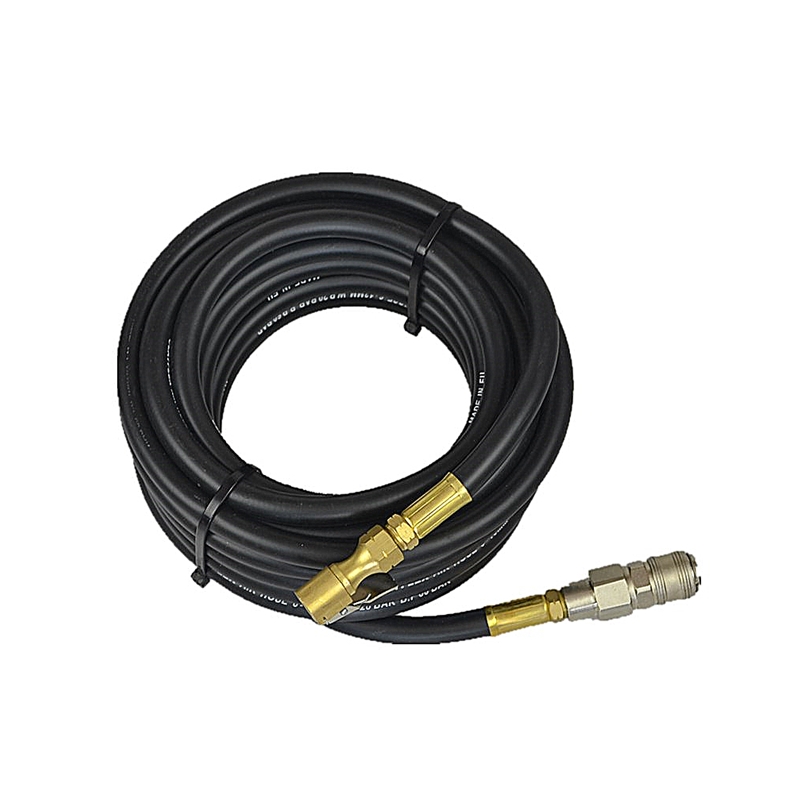

Hose Length 7.5 M
Advised Application Forecourt, Industrial, Workshops
Supply Voltage AC 110 - 240V(50 - 60Hz), or DC 12V
Wattage 12 W max.
Working Temperature -10 ~ +50℃
Humidity Range Up to 95% RH non condensing
Inflation Flow 3,000 L/min @ 182 PSI
IP Rate IP56
Dimension 230 x 278 x 85 mm
Weight 5.5 kgs
