ARO Style Air Coupler Plug

●  The ARO or A style Air Coupler Plug is made of solid brass for better durability.

●  Our fittings are interchangeable with similar couplers manufactured to the same standard.

●  Applied for air compressors, pneumatic tools, water, grease, paint etc.

●  1/4 basic flow size

●  Connecting type: NPT male thread, NPT female thread, hose barb.

●  Max. air pressure: 300 PSI

●  Max. working temperature: -40°~ +120°C / -40°~ +250°F

●  Our ARO Air Coupler Plug is also available in material steel with zinc plated which features high corrosion resistance and long service life.

●  Minimum Order Quantity: 2,000pcs / item

Product Detail

Solid brass industrial style Air Coupler Plug helps you quickly switch between different air tools and accessories. It is a must have air fittings for pneumatic tools, air compressors, air blow guns and air hoses etc, and widely used in systems such as air compressors, automated manufacturing operations, air craft control and automotive workshop. The ARO style is compatible with A couplers. The solid brass construction provides high corrosion resistance and prolong service span. Integral sleeve guard resists accidental disconnection. Recommended to use Teflon tape.

Body Size Connection Type Part Number Material

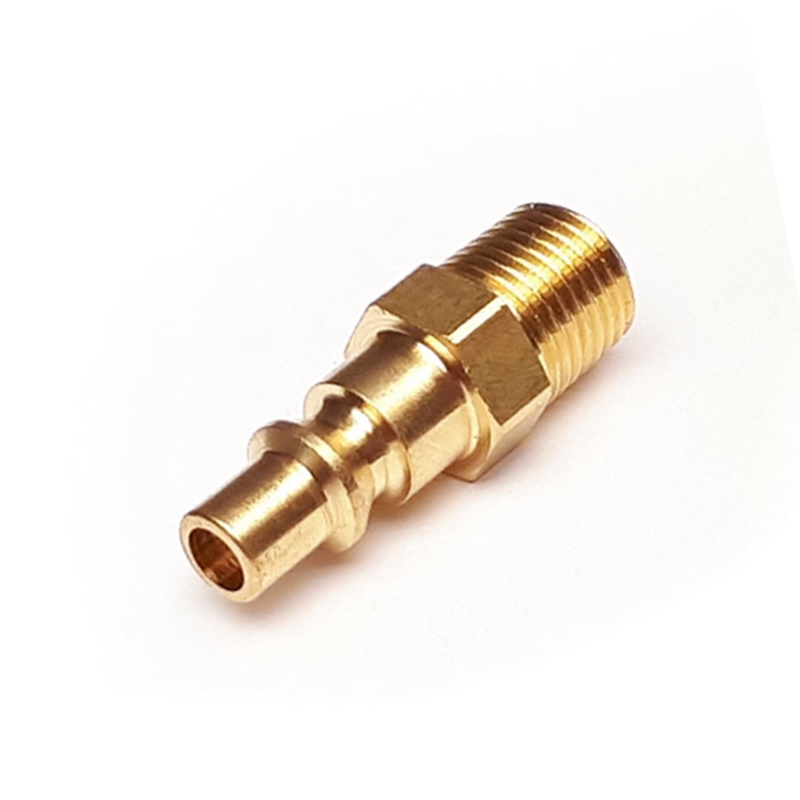

1/4 1/4-18 NPT Male Thread APA22M Brass, Steel, Aluminium

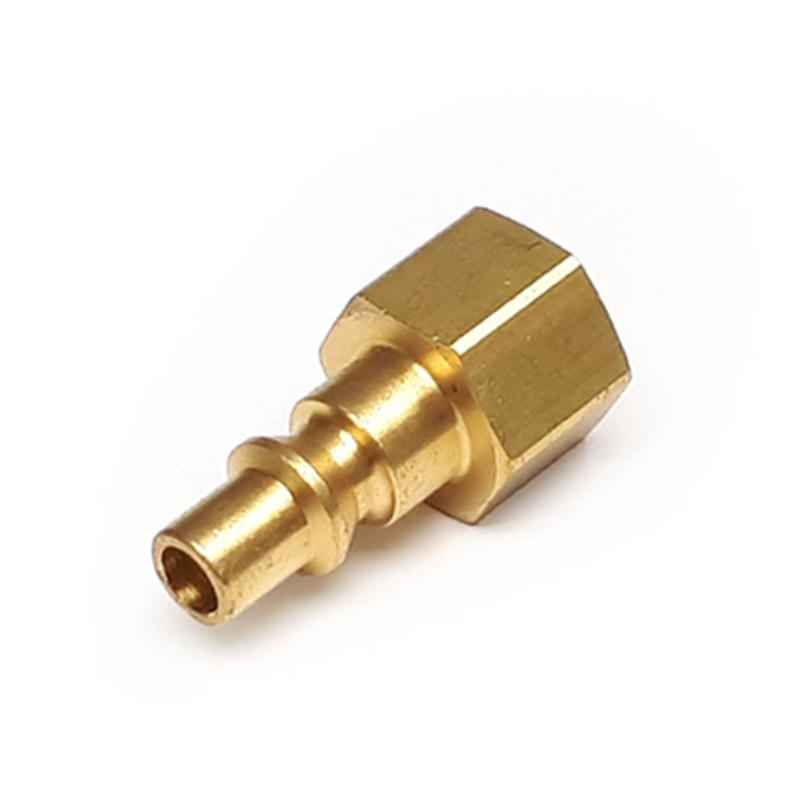

1/4 1/4-18 NPT Female Thread APA22F Brass, Steel, Aluminium
1/4 3/8-18 NPT Male Thread APA23M Brass, Steel
1/4 3/8-18 NPT Female Thread APA23F Brass, Steel
1/4 1/4 Hose I.D., Barbed APA22H Brass, Steel
1/4 3/8 Hose I.D., Barbed APA23H Brass, Steel
