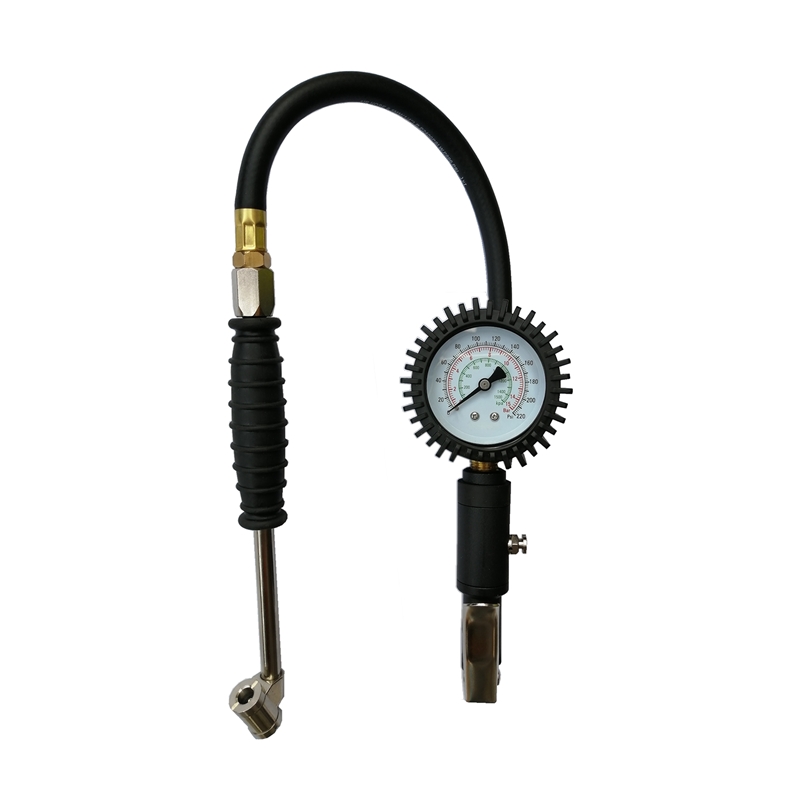

Tire Inflator With Dial Gauge

Part # 192121

• Operation – Inflate, Deflate & Measure
• Tire inflator with dial gauge features rubber bump guard to protect against drops and knocks
• Big thumb operated inflator button and easy access deflator bleed button
• High precision gauge equipped with metal housing, calibrated 10 – 220 PSI.
• Tire inflator with dial gauge has multiple measurements: PSI, Bar, Kpa
• 1/4” NPT inlet, BSP thread also available
• Dual head chuck makes tire valve more accessible.
• Tire inflator with dial gauge equipped with 12” flexible rubber hose

Product Detail

Part Number 192121
Reader Unit  Dial Gauge
Chuck Type Dual Head Air Chuck
Max. Inflation 220 PSI / 15 Bar / 1,500 kpa
Scale PSI, Bar, kpa
Inlet Size 1/4" NPT / BSP female
Hose Length 15.7"(400mm)
Housing Zinc Alloy Die Casting
Trigger Plated Steel
Accuracy +/- 2%
Operation Inflate, Measure
Max. Airline Pressure 230 PSI
Deflation Valve Individual Valve
