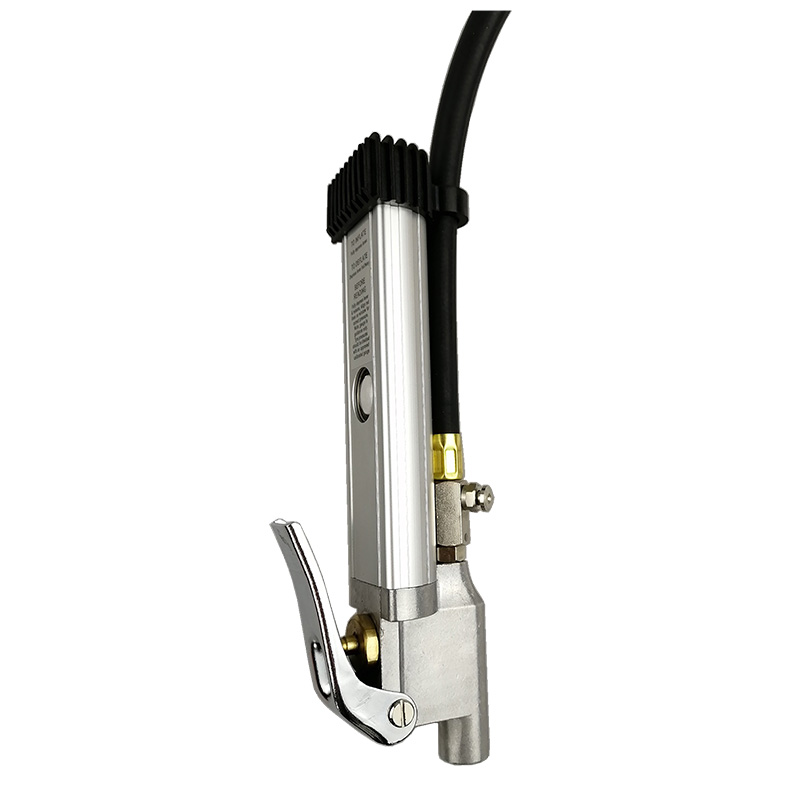

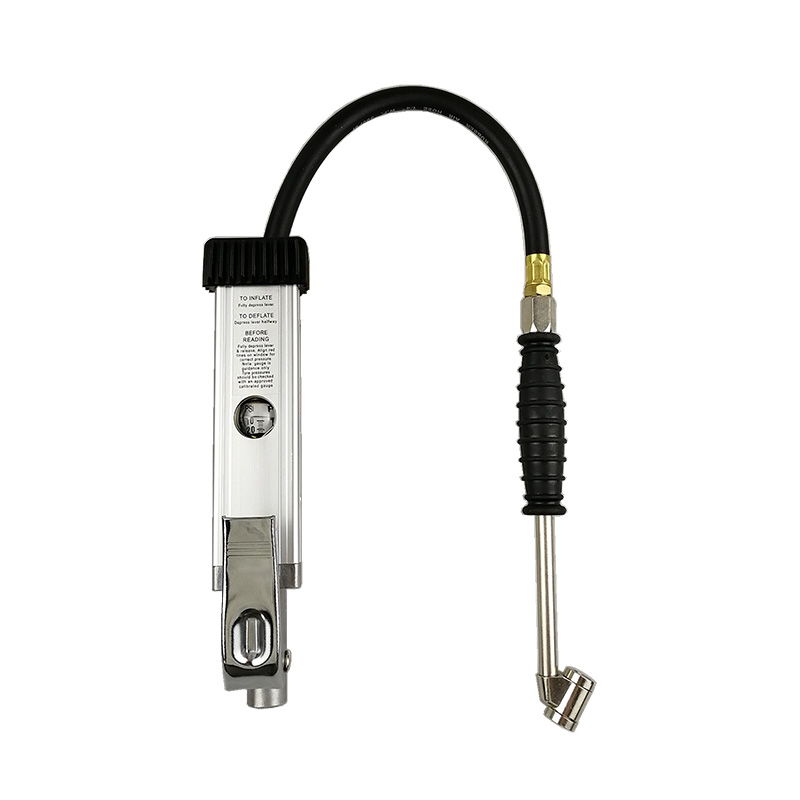

Heavy Duty Tyre Inflator With Gauge

Part # 192038

●  Precision engineered for industrial use giving a maximum airline pressure of up to 150 PSI

●  Linear gauge reading in PSI with 2psi increment, could be customized for Bar, Kpa etc.

●  Tough die cast Aluminum body with steel operating lever and impact absorbing bumper

●  Each heavy duty tyre inflator with gauge is performance-tested and calibrated to international accuracy standard: ANSI B40.1 Grade B (2%) and EN12645: 2014

●  Air inlet – 1/4 NPT or BSP Female

●  Air pressure range: 0 – 150 PSI / 0 – 10 Bar

●  The compact design makes it easy to store away

●  Ideal for workshops, tyre bays and garage forecourts

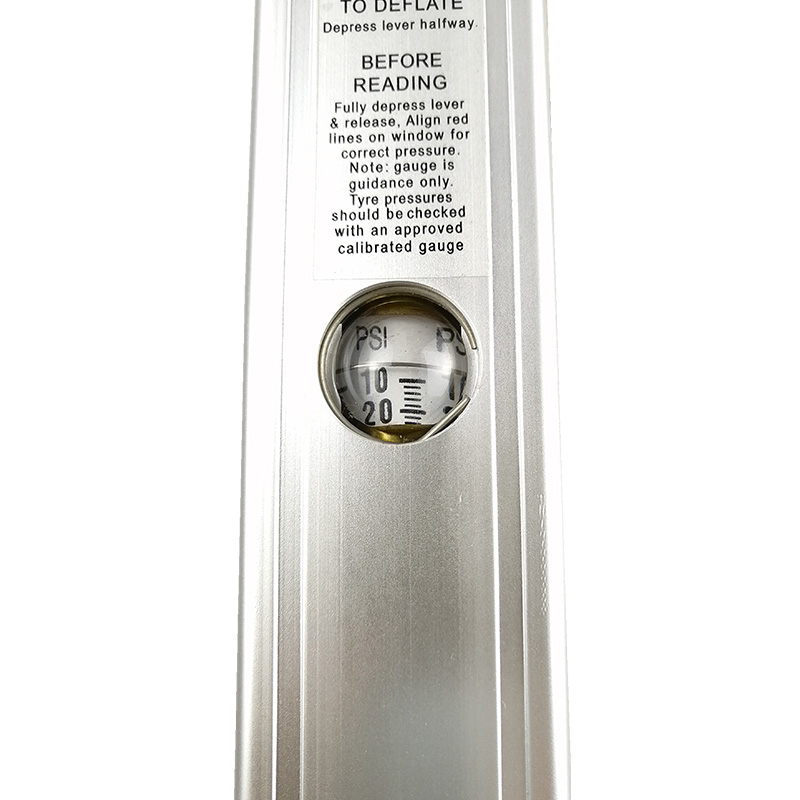

●  Large magnifier viewing window gives great field of viewing

●  Lighter weight provides less work strain and easier for repetitive use

●  The heavy duty tyre inflator with gauge is slim line profile, easier to use and less prone to damage when dropped.

●  The heavy duty tyre inflator with gauge comes with a rubber grip on chuck which is a dual head and hold on style

●  Separated air bleeding valve avoids confusion of inflating and deflating.

●  Both valve cartridges and gauge can be replaced. Less drag, reduced friction & less movement inertia means no internal corrosion, no sticking and no skewing of accuracy

Product Detail

The highly regarded tyre Inflator is the standard tools for garages, petrol forecourts, tyre shops and depots, and is popular amongst operators and tyre fitters for its reliability and accuracy, and sturdy yet slim line design.

The tyre gauge is robust and highly accurate, offering leading inflation and deflation rates and high performance both indoor and outdoor. Meanwhile the new engineered valve mechanism and larger hose ensure the high flow air filling, representing substantial labour-savings for operators.

The more choice of tyre valve chuck and hose length is suitable for all tyre inflation and applications.


-  Reduced operating costs thru fast inflation and deflation speed

-  Long span life – excellent shock resistance with robust durable design and construction

-  High versatility – suitable for indoor and outdoor environments, as well as commercial and retail applications

-  Guaranteed accuracy – each unit was tested during mass production.

For the Tyre User/Fleet Manager

-  Reduced tyre wear and extended tyre life

-  Reduced fuel consumption

-  Increased safety by reducing tyre-related incidents


Part Number 192038 Hose Length 15.7″(400mm)
Reader Unit Inflator gauge with viewing window Housing Aluminum Alloy Die Casting
Chuck Type Dual Head Air Chuck Trigger Steel
Max. Inflation 150 PSI Accuracy +/- 2%
Scale PSI Operation Inflate, Deflate, Measure
Inlet Size 1/4″ NPT / BSP female Max. Airline Pressure 160 PSI
