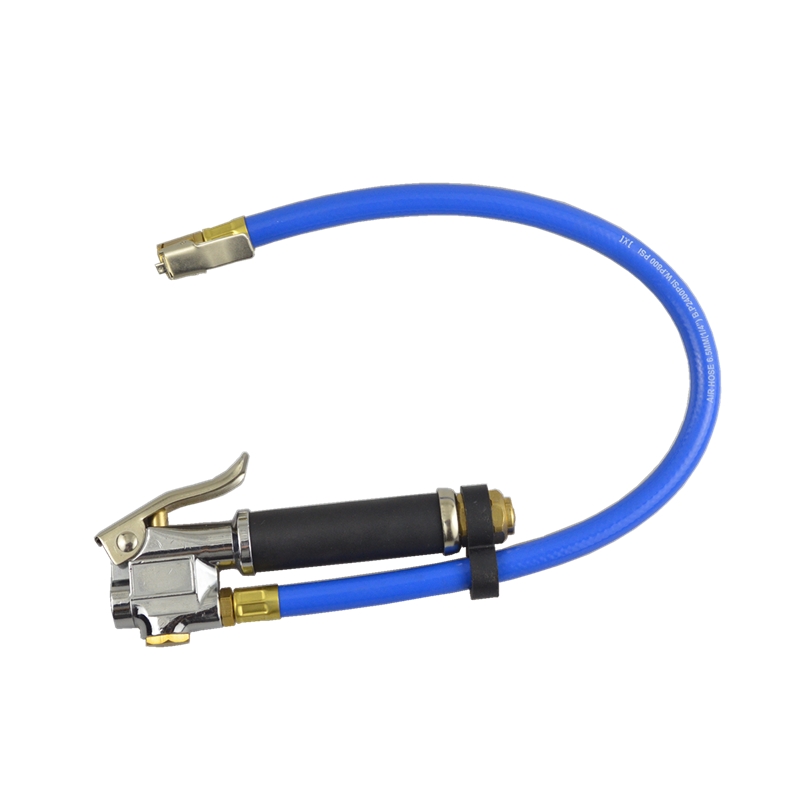

Bayonet Tire Inflator

Part # 192120

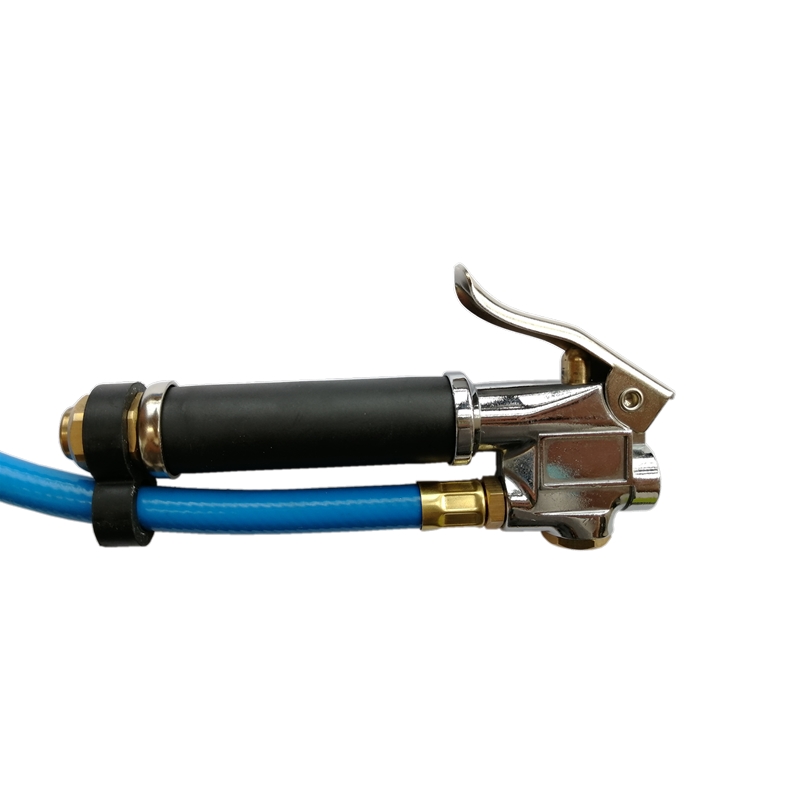

• Lever action trigger and heavy-duty construction, provides long service life even with constant use
• Protective sleeve over dial tube for impact protection, withstands the tough home garage or commercial shop use.
• Complete with a brass indicator bar for easy reading
• Includes a 12 inch hose with a pressure range that offers 10-120 PSI (2 lb increments)
• Clip-on air chuck for one hand operation

Product Detail

Part Number 192120
Reader Unit Bayonet Style Gauge
Chuck Type Clip-on Air Chuck
Max. Inflation 120 PSI
Scale PSI
Inlet Size 1/4" NPT / BSP female
Hose Length 15.7"(400mm)
Housing Zinc Alloy Die Casting
Trigger Plated Steel
Accuracy +/- 2%
Operation Inflate, Measure
Max. Airline Pressure 170 PSI
Deflation Valve (optional)
