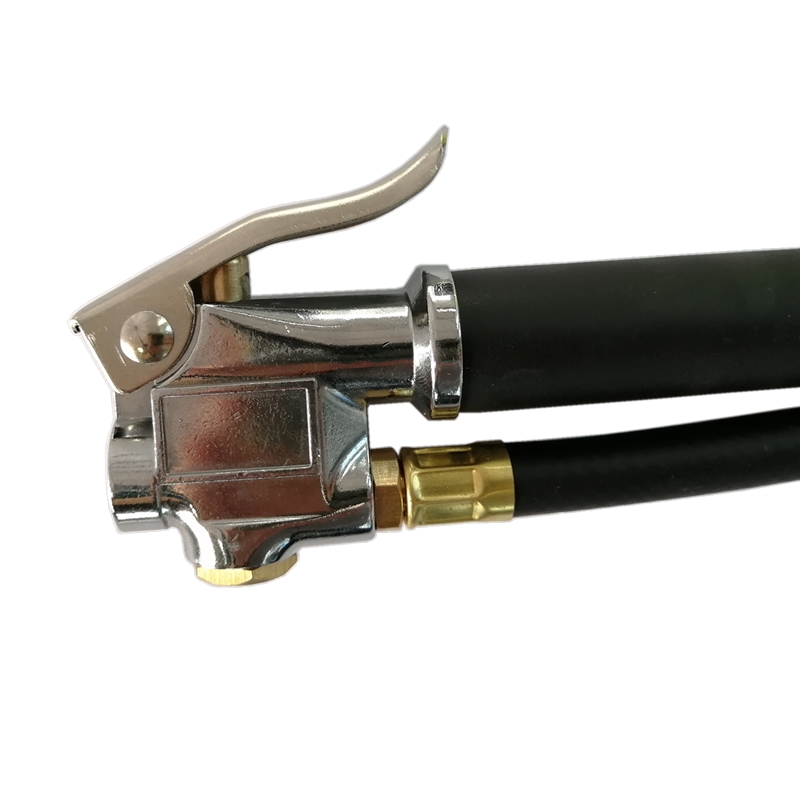

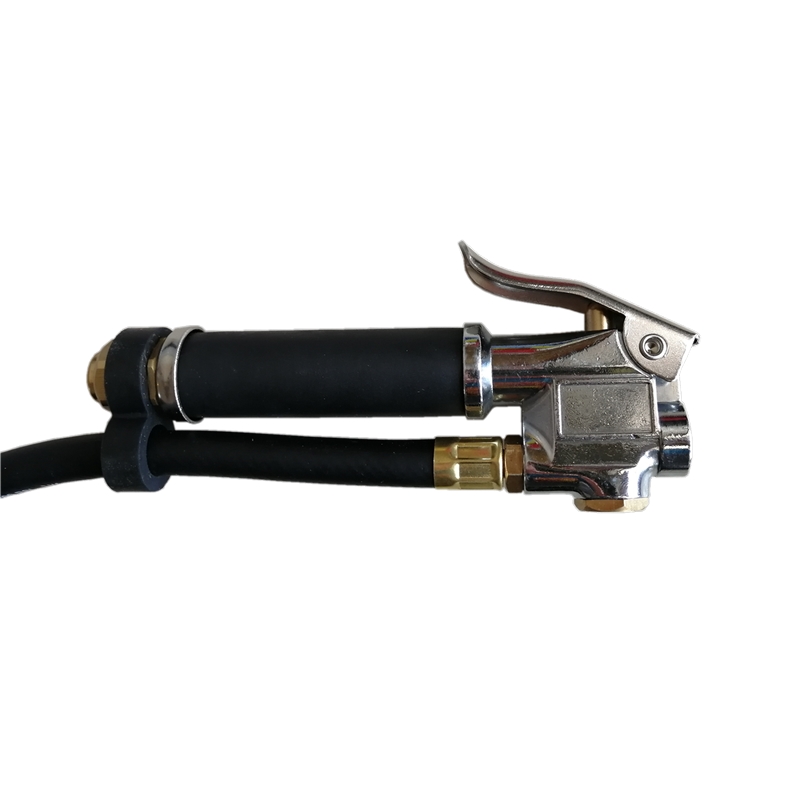

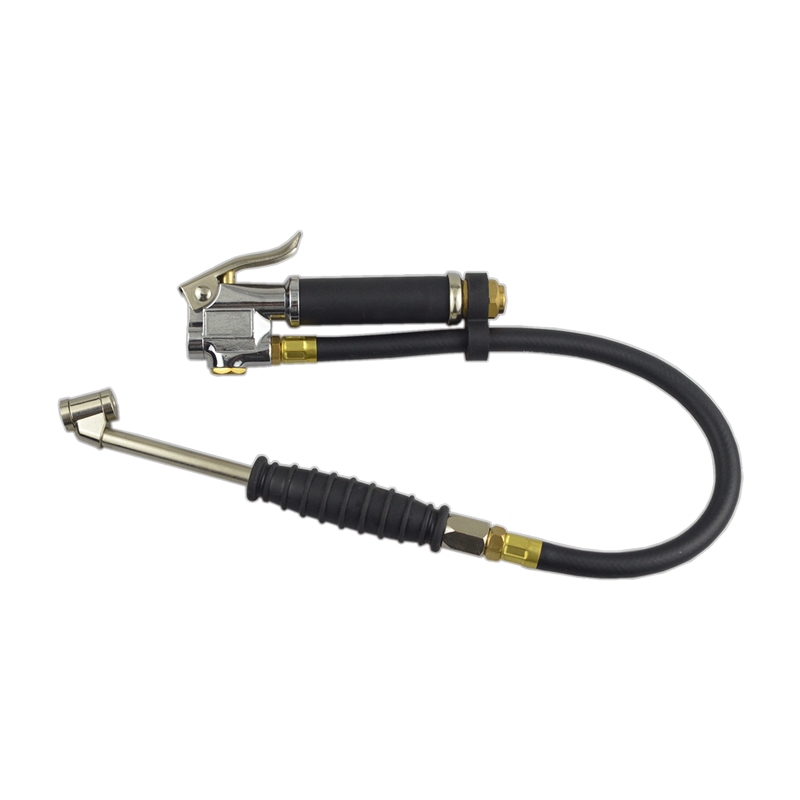

Bayonet Inflator Gauge

Part # 192119

• Heavy duty bayonet inflator gauge with brass valve mechanism will provide years of reliable service
• Protective sleeve over dial tube for impact protection, withstands the tough home garage or commercial shop use.
• The bayonet inflator gauge features solid brass bar gauge calibrated 10 – 120 PSI in 2 PSI increments
• The bayonet inflator gauge is constructed with heavy duty cast body which designed for longevity and durability
• Dual head chuck makes tire valve more accessible.
• Max 300 PSI hybrid rubber hose, 1/4” NPT or BSP air inlet

Product Detail

Part Number 192119
Reader Unit Bayonet Style Gauge
Chuck Type Dual Head Air Chuck
Max. Inflation 120 PSI
Scale PSI
Inlet Size 1/4" NPT / BSP female
Hose Length 15.7"(400mm)
Housing Zinc Alloy Die Casting
Trigger Plated Steel
Accuracy +/- 2%
Operation Inflate, Measure
Max. Airline Pressure 170 PSI
Deflation Valve (optional)
