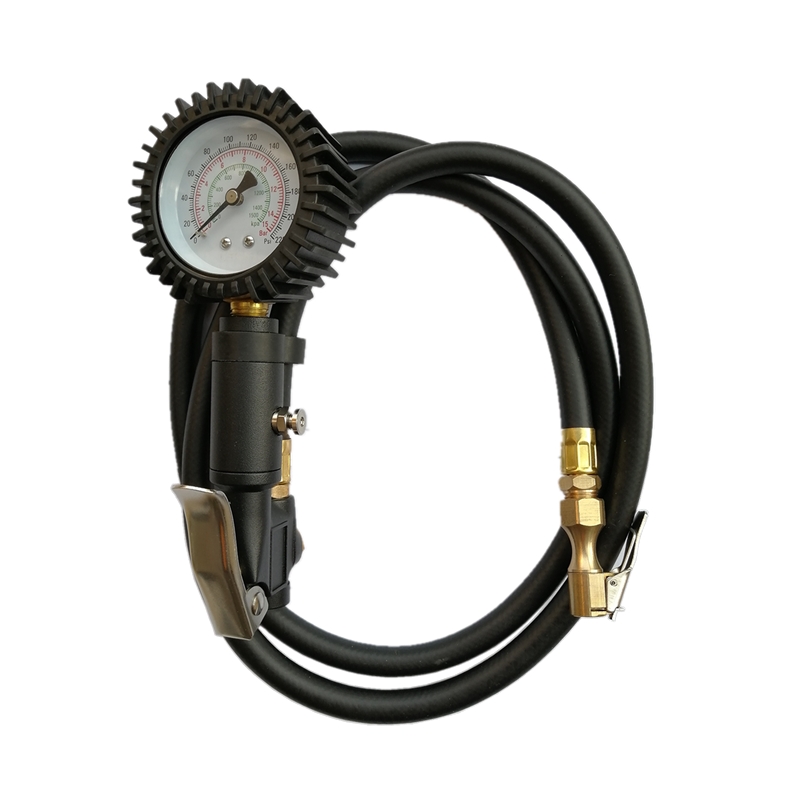

Commercial Tire Inflator With Gauge

Part # 192048

• Fully equipped with a Zinc alloy die casting body w/ a rugged matte black powder coated finish
• Protective case over dial gauge for impact protection, withstands the tough home garage or commercial shop use.

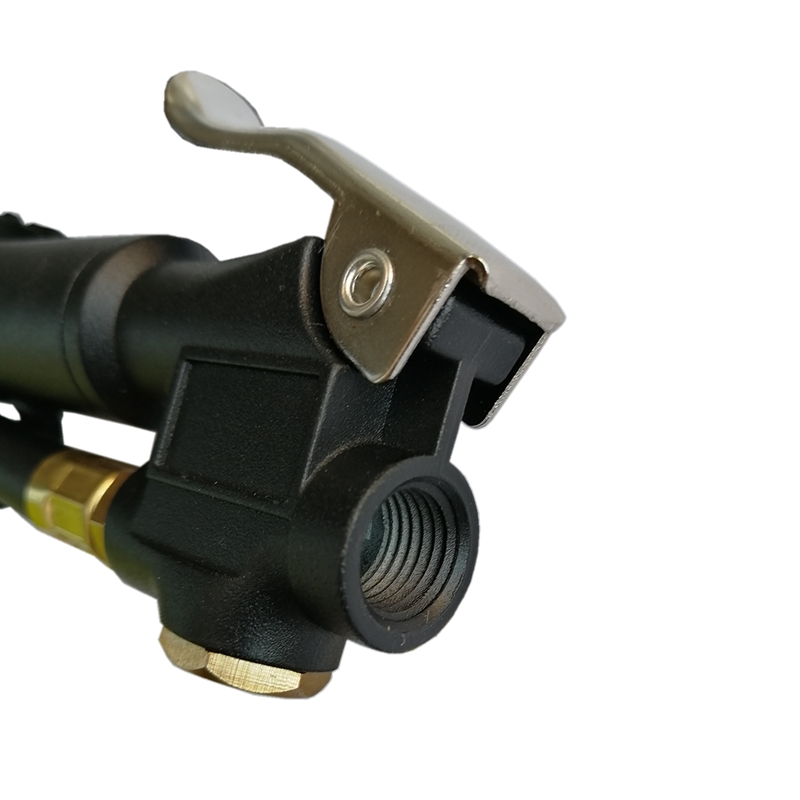

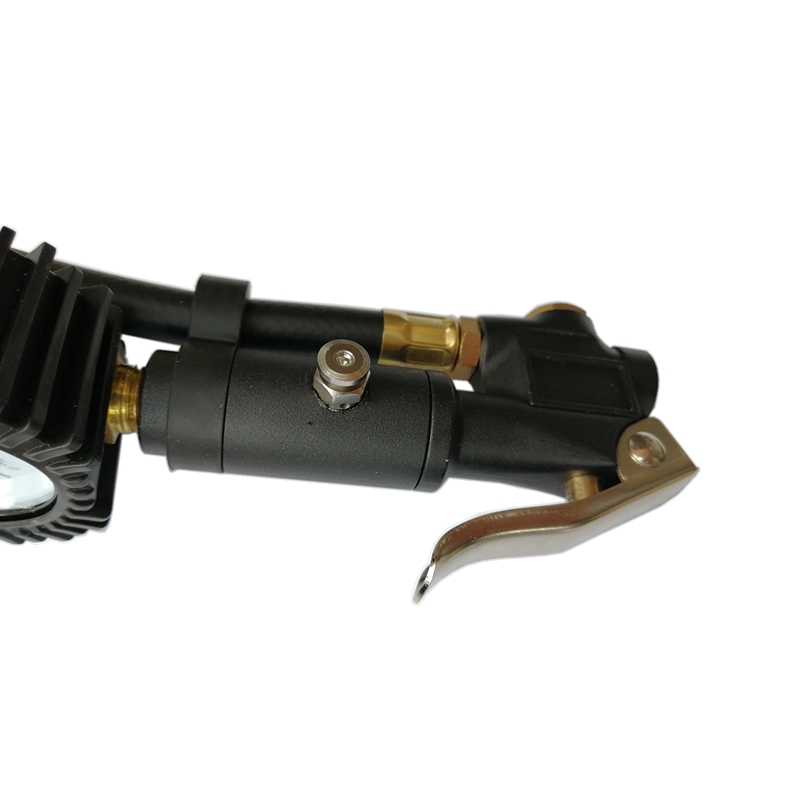

• Push-to-Inflate air filler thumb trigger, and built-in air bleeder valve to quickly air down overinflated tires

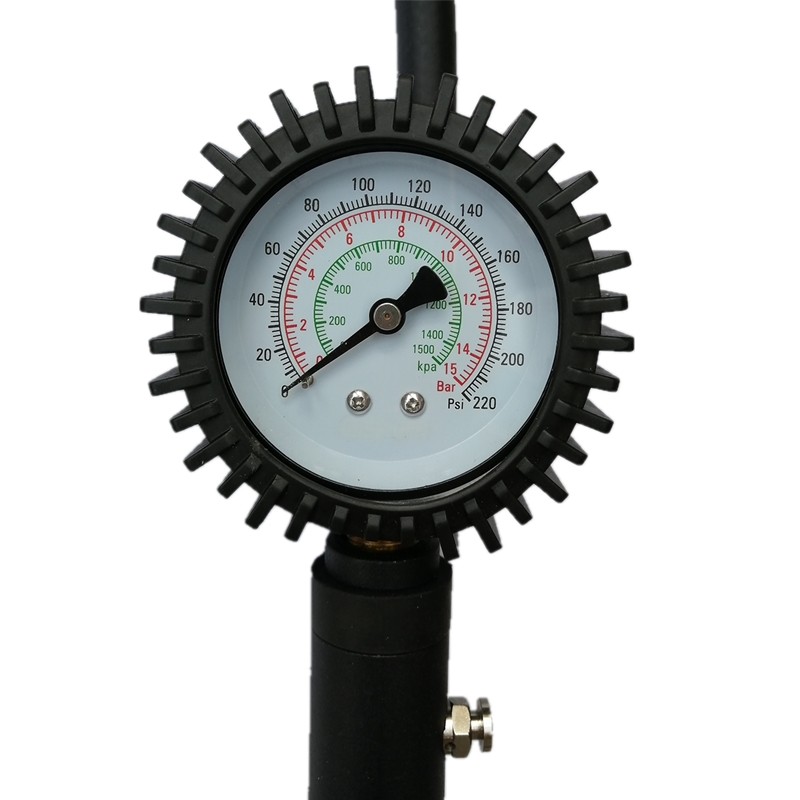

• High precision gauge equipped with metal housing, calibrated 10 – 220 PSI.
• 1/4” NPT inlet, BSP thread also available
• Dual head chuck makes tire valve more accessible.

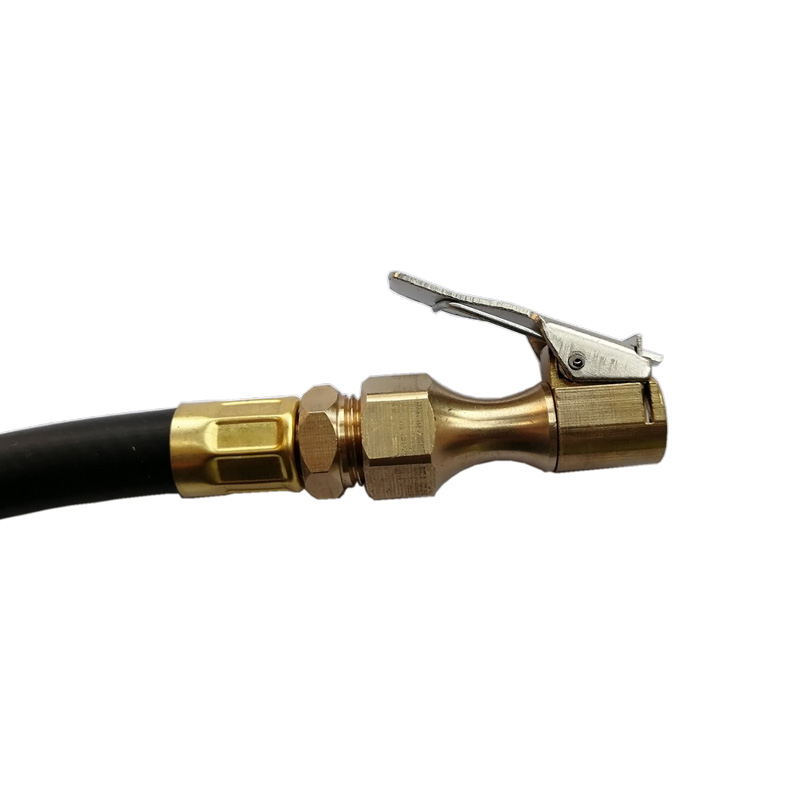

• 5 feet flexible rubber hose with swivel air chuck connector

Product Detail

Part Number 192048
Reader Unit  Dial Gauge
Chuck Type Dual Head Air Chuck
Max. Inflation 220 PSI / 15 Bar / 1,500 kpa
Scale PSI, Bar, kpa
Inlet Size 1/4" NPT / BSP female
Hose Length 5 feet (1.5M)
Housing Zinc Alloy Die Casting
Trigger Plated Steel
Accuracy +/- 2%
Operation Inflate, Measure
Max. Airline Pressure 230 PSI
Deflation Valve Individual Valve
