Industrial Style Air Coupler Plug
● The industrial style Air Coupler Plug is made of solid brass for better durability.
● Our fittings are interchangeable with similar couplers manufactured to the same standard.
● These air nipples conform to Mil spec MIL-C-4109F and ISO6150-B.
● Applied for air compressors, pneumatic tools, air lines etc.
● Body size includes 1/4, 3/8 & 1/2.
● Connecting type: NPT male thread, NPT female thread, hose barb.
● Max. air pressure: 300 PSI
● Max. working temperature of our Air Coupler Plug is up to 120℃ or 250℉
● Minimum Order Quantity: 2,000pcs / item
-
Industrial Style Air Couplers
● These industrial style Quick Connect Air Couplings is made of solid brass for better durability.
● 6 ball bearings provides better grip when connecting and sleeve guard prevents accidental disconnect.
● The tubular valve mechanism promotes high air flow.
● Our fittings are interchangeable with similar plugs manufactured to the same standard.
● These air couplers conform to Mil spec MIL-C-4109F and ISO6150-B.
● Applied for air compressors, pneumatic tools, air lines etc.
● Body size includes 1/4, 3/8 & 1/2.
● Connecting type: NPT male thread, NPT female thread, hose barb.
● Max. air pressure: 300 PSI.
● Max. working temperature of our Quick Connect Air Couplings is up to 120℃ or 250℉.
● Minimum Order Quantity: 2,000pcs / item
-
Tru-Flate Style / Automotive Air Coupler Plug
● The Tru-Flate style Air Coupler Plug, commonly referred to as automotive interchange, is made of solid brass for better durability.
● Our fittings are interchangeable with similar couplers manufactured to the same standard.
● Applied for air compressors, pneumatic tools, water, grease, paint etc.
● Body size includes 1/4 and 3/8
● Connecting type: NPT male thread, NPT female thread, hose barb.
● Max. air pressure: 300 PSI
● Max. working temperature of our Air Coupler Plug is up to 120℃ or 250℉
● Minimum Order Quantity: 2,000pcs / item
-
Tru-Flate Style / Automotive Air Coupler
● The Tru-Flate style or Automotive Air Coupler is made of solid brass for better durability.
● 6 ball bearings provides better grip when connecting and sleeve guard prevents accidental disconnect.
● The tubular valve mechanism promotes high air flow.
● Our fittings are interchangeable with similar couplers manufactured to the same standard.
● Applied for air compressors, pneumatic tools, water, grease, paint etc.
● Body size includes 1/4 & 3/8.
● Connecting type: NPT male thread, NPT female thread, hose barb.
● Max. air pressure: 300 PSI
● Max. working temperature of our Automotive Air Coupler is up to 120℃ or 250℉
● Minimum Order Quantity: 2,000pcs / item
-
ARO Style Air Coupler Plug
● The ARO or A style Air Coupler Plug is made of solid brass for better durability.
● Our fittings are interchangeable with similar couplers manufactured to the same standard.
● Applied for air compressors, pneumatic tools, water, grease, paint etc.
● 1/4 basic flow size
● Connecting type: NPT male thread, NPT female thread, hose barb.
● Max. air pressure: 300 PSI
● Max. working temperature: -40°~ +120°C / -40°~ +250°F
● Our ARO Air Coupler Plug is also available in material steel with zinc plated which features high corrosion resistance and long service life.
● Minimum Order Quantity: 2,000pcs / item
-
ARO Style Air Coupler
● The ARO Coupler or A Style Coupler is made of solid brass for better durability.
● Ball bearings provides better grip when connecting and sleeve guard prevents accidental disconnect.
● The tubular valve mechanism promotes high air flow.
● Our fittings are interchangeable with similar couplers manufactured to the same standard.
● Applied for air compressors, pneumatic tools, water, grease, paint etc.
● 1/4 basic flow size
● Connecting type: NPT male thread, NPT female thread, hose barb.
● Max. air pressure: 300 PSI
● Max. working temperature: -40°~ +120°C / -40°~ +250°F
● Our ARO Coupler in material steel is also available on request. The steel A Style Coupler with zinc plated features high corrosion resistance and long service life.
● Minimum Order Quantity: 2,000pcs / item
-
Lincoln Style Air Coupler Plug
● The Lincoln or L style long nose interchange Air Coupler Plug is made of harden steel.
● Lincoln style air fitting are the male end of coupling sets, also called quick-connect air coupling plugs or nipples. They are inserted into the Lincoln air coupler bodies (female ends) to connect pneumatic tools. Steel is hard and resilient with more damage resistance than softer metals and a wide range of working temperature, and Zinc-plated finish provides high corrosion resistance.
● The Lincoln style air fitting is interchangeable with Lincoln Interchange’s long stem series.
● Applied for air compressors, pneumatic tools and use only in air workshop.
● 1/4 basic flow size
● Connecting type: NPT male thread, NPT female thread.
● Max. air pressure: 300 PSI
● Max. working temperature: -40°~ +120°C / -40°~ +250°F
● Seal Material: Nitrile
● Our Lincoln style Air Coupler Plug is also available in material brass on request.
● Minimum Order Quantity: 2,000pcs / item
-
Lincoln Style Air Coupler
>● The Lincoln or L style long nose interchange air coupler is made of solid brass for better durability.
● Lincoln Air Coupler is the female end of coupling sets, also called quick-connect air coupling or compressed air coupling. They are connected with the Lincoln air plugs (male ends) to connect pneumatic tools. Lincoln Air Coupler in steel material is available. Steel is hard and resilient with more damage resistance than softer metals and a wide range of working temperature, and Zinc-plated finish provides high corrosion resistance.
● The Lincoln Air Coupler is interchangeable with Lincoln Interchange’s long stem series.
● Applied for air compressors, pneumatic tools and use only in air workshop.
● 1/4 basic flow size
● Connecting type: NPT male thread, NPT female thread.
● Max. air pressure: 300 PSI
● Max. working temperature: -40°~ +120°C / -40°~ +250°F
● Seal Material: Nitrile
● Minimum Order Quantity: 2,000pcs / item
-
Universal Air Coupler – Industrial, Automotive, ARO
● The Universal Air Coupler is made of solid brass for better durability.
● It accepts three types of nipples: Industrial Interchange, Automotive / Tru-Flate style and ARO style.
● The Universal Air Coupler permits multiple series nipples to mate with one coupler.
● The universal air fitting in steel material is available. Steel is hard and resilient with more damage resistance than softer metals and a wide range of working temperature, and Zinc-plated finish provides high corrosion resistance.
● Applied for air compressors, pneumatic tools and drop down air lines.
● 1/4 basic flow size
● Connecting type: NPT male thread, NPT female thread.
● Max. air pressure: 300 PSI
● Max. working temperature: -40°~ +120°C / -40°~ +250°F
● Seal Material: Nitrile
● Minimum Order Quantity: 2,000pcs / item
-
Universal Quick Coupler – Industrial, High Flow / European, ARO
● The high flow Universal Quick Coupler is made of solid brass, which has better durability.
● It accepts three types of nipples: Industrial Interchange, High Flow / V style or European style and ARO style.
● The high flow Universal Quick Coupler allows multiple series nipples to mate with one coupler.
● The universal air fitting in steel material is available. Steel is hard, and has higher damage resistance and a wide operating temperature range than soft metals. The galvanized surface provides high corrosion resistance.
● Applied for air compressors, pneumatic tools and drop down air lines.
● 1/4 basic flow size
● Connecting type: NPT male thread, NPT female thread.
● Max. air pressure: 300 PSI
● Max. working temperature: -40°~ +120°C / -40°~ +250°F
● Seal Material: Nitrile
● Minimum Order Quantity: 2,000pcs / item
-
High Flow Style / European Air Coupler Plug
● The high flow or V style Air Coupler Plug has more than 2 times larger flow area than standard industrial interchange fittings. The increased flow results in greater tool efficiency and decreased air costs. The nipples are made of solid brass for better durability, and steel material is also available. Steel is hard and resilient with more damage resistance than softer metals and a wide range of working temperature, and Zinc-plated finish provides high corrosion resistance.
● High flow air hose fittings are the male end of coupling sets, also called quick-connect air coupling plugs or nipples. They are inserted into the V style air coupler bodies (female ends) to connect pneumatic tools.
● The high flow or V style Air Coupler Plug is interchangeable with Germany style couplings DN7.2 – 7.8, Cejn 320, Legris 25/26, Norgren 234/238, Rectus 25/26, Schrader InterCheck 35.
● Applied for air compressors, pneumatic tools and use only in air workshop.
● 1/4 & 3/8 basic flow size
● Connecting type: NPT male thread, NPT female thread and hose barb.
● Max. air pressure: 300 PSI
● Max. working temperature: -40°~ +120°C / -40°~ +250°F
● Seal Material: Nitrile
● Minimum Order Quantity: 2,000pcs / item
-
Germany Style / High Flow Air Coupler
● The High Flow Air Coupler has greater airflow characteristics for the larger air tool applications in garage and tire shop environments. The increased flow results in greater tool efficiency and decreased air costs. The high flow air compressor fittings are manufactured in solid brass for better durability, and steel material is also available. Steel is hard and resilient with more damage resistance than softer metals and a wide range of working temperature, and Zinc-plated finish provides high corrosion resistance.
● High flow air hose fittings are the female end of coupling sets, also called high flow quick connect air fittings or couplings. They are coupled with V style air nipples (male ends) to connect pneumatic tools.
● The High Flow Air Coupler is interchangeable with Germany style couplings DN7.2 – 7.8, Cejn 320, Legris 25/26, Norgren 234/238, Rectus 25/26, Schrader InterCheck 35.
● Applied for air compressors, pneumatic tools and use only in air workshop.
● 1/4 & 3/8 basic flow size
● Connecting type: NPT male thread, NPT female thread and hose barb.
● Max. air pressure: 300 PSI
● Max. working temperature: -20°~ +120°C / -4°~ +250°F
● Seal Material: Nitrile
● Minimum Order Quantity: 2,000pcs / item
-
UK Style Air Coupling Adapter
● The UK style air coupling adapter are manufactured in heat-treated hardened steel for better durability. Steel is hard and resilient with more damage resistance than softer metals and a wide range of working temperature, and Zinc-plated finish provides high corrosion resistance.
● The standard push-fit adapter that screws onto air tools with corresponding threaded air inlet terminal to establish a secure, positive connection to the air line (when used with an appropriate coupling).
● The air coupling adapter feature greater airflow characteristics for the larger air tool applications in garage and tire shop environments. The increased flow results in greater tool efficiency and decreased air costs. The air adapter are the male end of coupling sets. They are coupled with UK style air couplings (female ends) to connect pneumatic tools.
● The UK style air coupling adapter are compatible with Cejn 295 and Rectus 19.
● Applied for air compressors, pneumatic tools and air lines in workshop.
● Connecting type: BSPT male thread, BSPT female thread and hose tailpiece.
● Max. air pressure: 14 bar / 200 PSI
● Max. working temperature: -20°~ +120°C / -4°~ +250°F
● Minimum Order Quantity: 2,000pcs / item
-
UK Style Air Quick Connect Couplings, Single Action
● The UK style air quick connect couplings are manufactured in heat-treated hardened steel for better durability. Steel is hard and resilient with more damage resistance than softer metals and a wide range of working temperature, and Zinc-plated finish provides high corrosion resistance.
● Single action for quick disconnect, the coupling is connected by simply pushing the adaptor into the socket, the sleeve guard will restore automatically, no need manually slide back.
● The air quick connect couplings feature greater airflow characteristics for the larger air tool applications in garage and tire shop environments. The increased flow results in greater tool efficiency and decreased air costs. The air couplings are the female end of coupling sets. They are coupled with UK style air nipples (male ends) to connect pneumatic tools.
● The UK style air quick connect couplings are compatible with Cejn 295 and Rectus 19.
● Applied for air compressors, pneumatic tools and air lines in workshop.
● Connecting type: BSPT male thread, BSPT female thread and hose tailpiece.
● Max. air pressure: 14 bar / 200 PSI
● Max. working temperature: -20°~ +120°C / -4°~ +250°F
● Seal Material: Nitrile
● Minimum Order Quantity: 2,000pcs / item
-
UK Style Air Quick Connect Couplings, Double Action
● The UK style air quick connect couplings are manufactured in heat-treated hardened steel for better durability. Steel is hard and resilient with more damage resistance than softer metals and a wide range of working temperature, and Zinc-plated finish provides high corrosion resistance.
● Double action, slide the collar back and insert the fitting, then restore the collar to allow the tool and airline to quickly connect or disconnect.
● The air quick connect couplings feature greater airflow characteristics for the larger air tool applications in garage and tire shop environments. The increased flow results in greater tool efficiency and decreased air costs. The air couplings are the female end of coupling sets. They are coupled with UK style air nipples (male ends) to connect pneumatic tools.
● The UK style air quick connect couplings are compatible with Cejn 295 and Rectus 19.
● Applied for air compressors, pneumatic tools and air lines in workshop.
● Connecting type: BSPT male thread, BSPT female thread and hose tailpiece.
● Max. air pressure: 14 bar / 200 PSI
● Max. working temperature: -20°~ +120°C / -4°~ +250°F
● Seal Material: Nitrile
● Minimum Order Quantity: 2,000pcs / item
-

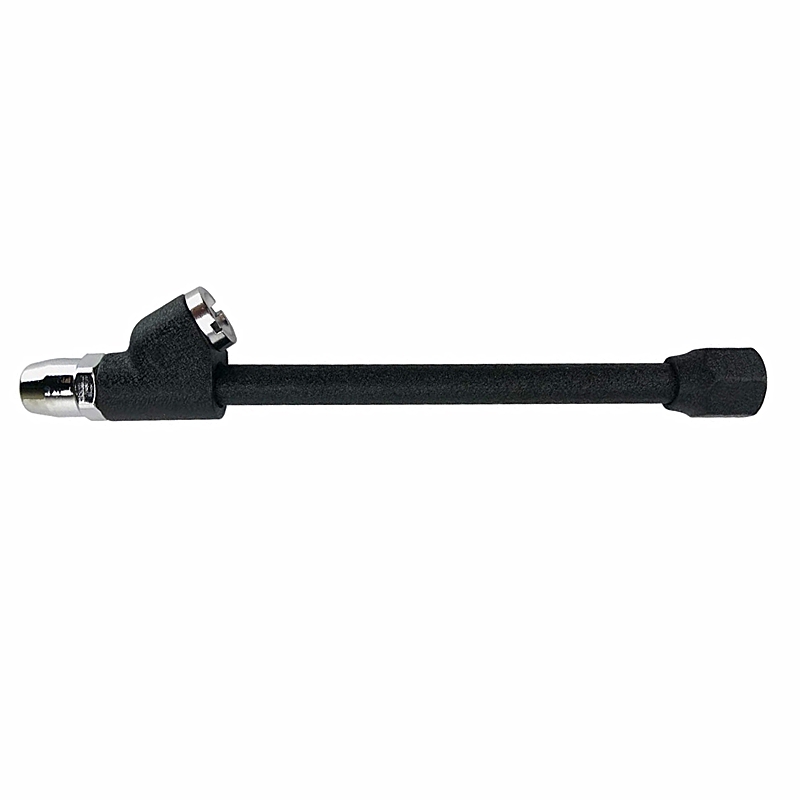

Lock On Tire Air Chuck
Part # AC2073
● Revers angle dual head lock-on air chuck fits standard automotive wheel with Schrader valves and can be applied to fill a variety of tires, including car, van, bus, pick-up, tractor, truck and heavy vehicle.
● The angled push-pull chuck has 2 connection points: straight head is specially designed for inner/single wheels valves whose stem is outwards, and 30 degree reverse head for outer wheels whose valve stem is inwards. So it can access hard-to-reach valves.
● The angled air chuck has the option of a closed or open flow type. The closed type is constructed with built-in shut-off valve to hold air back until it is pressed onto a valve stem. This should be used with air compressors or air supply systems without a valve between the air source and the tire chuck. When used as the inflating tip for a tire inflator or tire gauge, it has to be the open flow type air chuck so that your inflator or gauge will not be broken.
● The dual head is made of zinc alloy, and steel cap with chrome plated which offers better corrosion resistance.
● The 6 inch / 150mm long stem and dual head chuck body is coated with polyurethane for rust free and help you to reach inner wheels while keep your hands clean.
● Max pressure of 150 pounds per square inch
● The inlet features 1/4” NPT female thread with 5/8” or 16mm hexagon terminal, compatible with any air source with relative male thread adaptors.
● Both straight head and angled reverse head could lock onto tire valve thread.
-
Nitto Style Air Fittings
● The Nitto style air fittings features simple and secure push-to-connect (single action) design, just plug the adapter into coupler for connection. One-hand operation saves the connection time and improve efficiency. The Nitto compressor fittings are manufactured in heat-treated hardened steel for better durability. Steel is hard and resilient with more damage resistance than softer metals and a wide range of working temperature. Special heat treatment and black oxidation finish meet military standard, which provides high corrosion resistance.
● The standard push-fit adapter that screws onto air tools with corresponding threaded air inlet terminal to establish a secure, positive connection to the air line (when used with an appropriate coupling).
● The Nitto style air fittings feature greater airflow characteristics for the larger air tool applications in garage and tire shop environments. The built-in valve design lower the pressure loss and increase flow rate. The air plugs are the male end of coupling sets. They are coupled with Nitto style air couplings / sockets to connect pneumatic tools.
● The Nitto style air fittings are compatible with Nitto equivalent series.
● Applied for air compressors, pneumatic tools and air lines in workshop.
● Nominal bore diameter: 7.5mm (body size: 1/4)
● Connecting type: BSPT male thread, BSPT female thread, hose barb and hose guard nut.
● Max. air pressure: 15 bar / 218 PSI
● Max. working temperature: -20°~ +120°C / -4°~ +250°F
● Minimum Order Quantity: 2,000pcs / item
-
Nitto Style Air Coupler
● The Nitto air coupler features simple and secure push-to-connect (single action) design, just plug the adapter into coupler for connection. One-hand operation saves the connection time and improve efficiency. The Nitto type quick coupler is manufactured in heat-treated hardened steel for better durability. Steel is hard and resilient with more damage resistance than softer metals and a wide range of working temperature. Special heat treatment and black oxidation finish meet military standard, which provides high corrosion resistance.
● The standard push-to-connect fittings that screws onto air tools with corresponding threaded air inlet terminal to establish a secure, positive connection to the air line (when used with an appropriate coupling).
● The Nitto air coupler provides greater airflow characteristics for the larger air tool applications in garage and tire shop environments. The built-in valve design lower the pressure loss and increase flow rate, and stainless steel ball and retainer prolong the service time. The Nitto type quick coupler is the female end of coupling sets. They are coupled with Nitto style air nipples / plugs to connect pneumatic tools.
● The Nitto air coupler are compatible with Nitto equivalent series.
● Applied for air compressors, pneumatic tools and air lines in workshop.
● Nominal bore diameter: 7.5mm (body size: 1/4)
● Connecting type: BSPT male thread, BSPT female thread, hose barb and hose guard nut.
● Max. air pressure: 15 bar / 218 PSI
● Max. working temperature: -20°~ +120°C / -4°~ +250°F
● Minimum Order Quantity: 2,000pcs / item
-

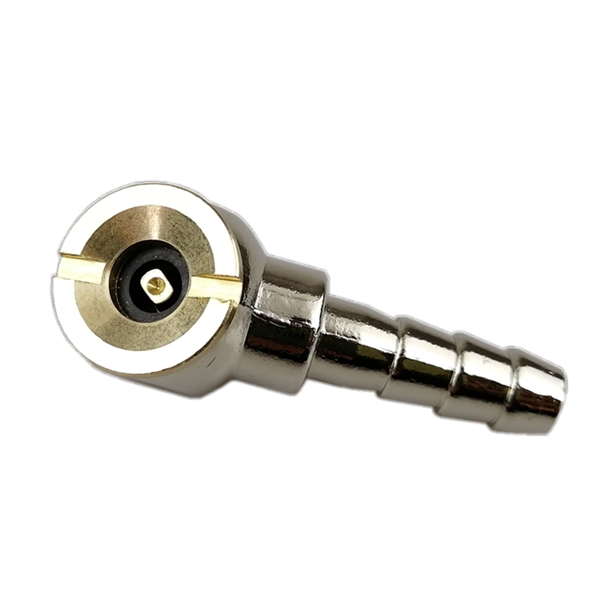

Ball Foot Chuck
Part # AC2098
● Ball foot chuck is designed to mount directly to Schrader valve stem, such as tire valve, air tank.
● The ball foot chuck is constructed with a built-in shut-off valve to stop airflow when chuck is not in use, and air flows only when the unit is engaged with valve stem.
● Hose barb is suitable for 1/4″ inner diameter hose.
● Ball foot chuck features Zinc alloy body with chrome plated, which provides more sturdy, corrosion resistance and wear resistance. Brass cap and valve makes it more durable even there is moistures in compressed air.
● Maximum air pressure of 150 pounds per square inch or 10 Bar.
● Open type for inflator gauge is also available. Close type is only for air line.
● Minimum order quantity: 2,000pcs.
-

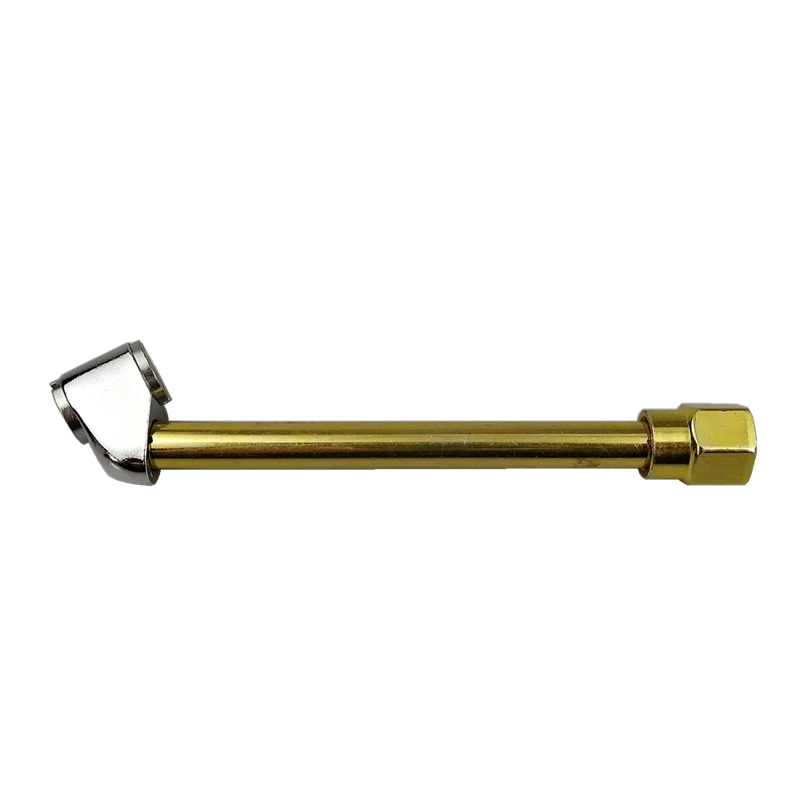

Dual Head Tire Chuck
Part # AC2097
● Dual head tire chuck is made of zinc alloy and brass. And push-pull dual head is specially designed for hard-to-touch valves when valve is facing inward.
● This dual head tire chuck is available for both closed flow and open flow. The closed type is designed with built-in shut-off valve for air line, which will shut down the air flow and air flows only the chuck engaged with tire valve stem. The open flow type is designed for tire inflator gauge or air pump.
● The dual head tire chuck features 1/4″ female NPT or BSP inlet with 5/8″ / 16mm hex connector, compatible with most air hose, tire inflator and air compressor accessories.
● 6” / 150mm long stem with chrome-plated, which is rust free and allows you to reach the inner wheels without dirty your hands.
● Max pressure of 150 pounds per square inch
● Widely applied for Schrader valve of car, truck, bus, tractor and large vehicle etc.
● Minimum order quantity: 2,000pcs.
Language:
